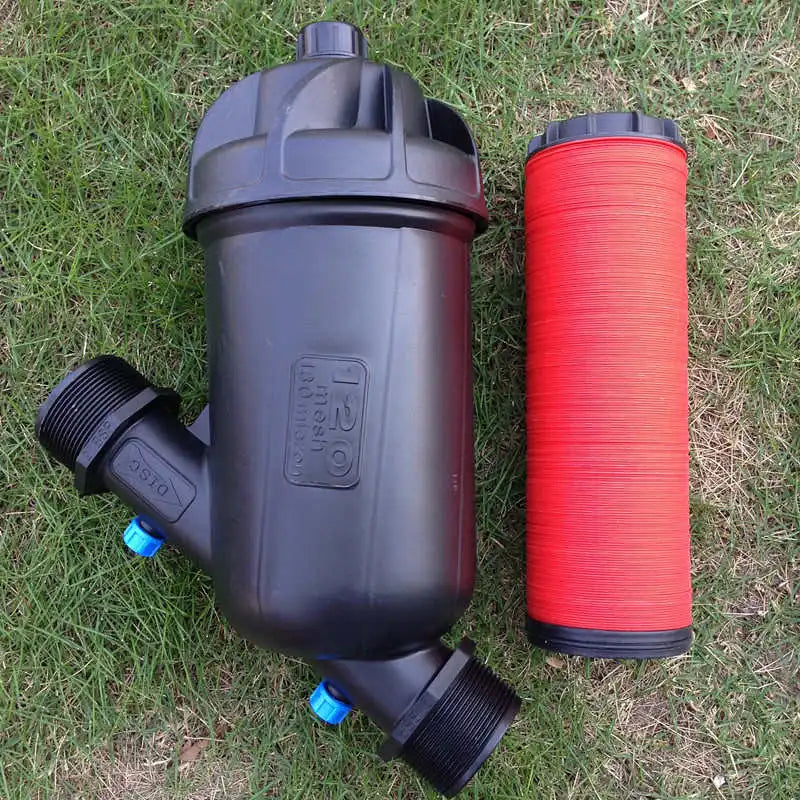

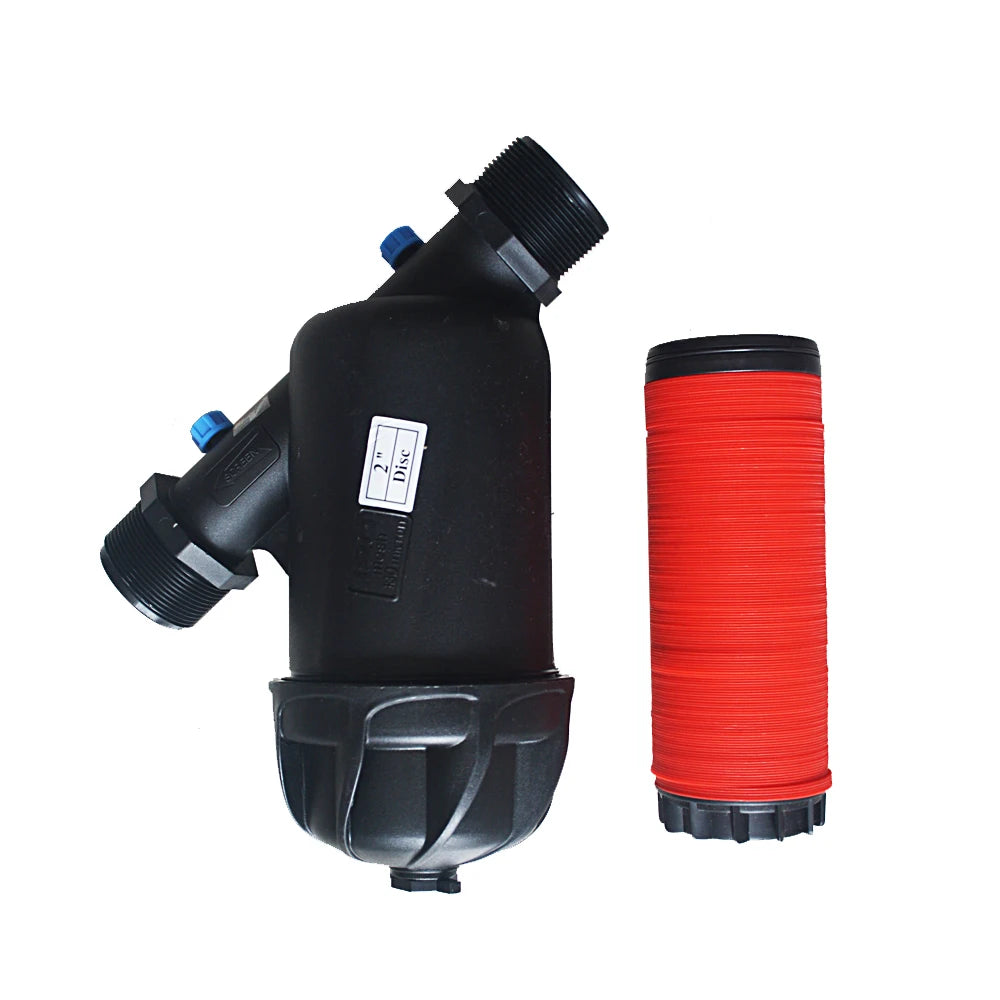

120Mesh 2'' Disc Filter for Drip Irrigation System Agricultural Irrigation Filter

1. Made from virgin modified polypropylene (PP), the filter body is strong ,durable, and resistant to pressure and impact.

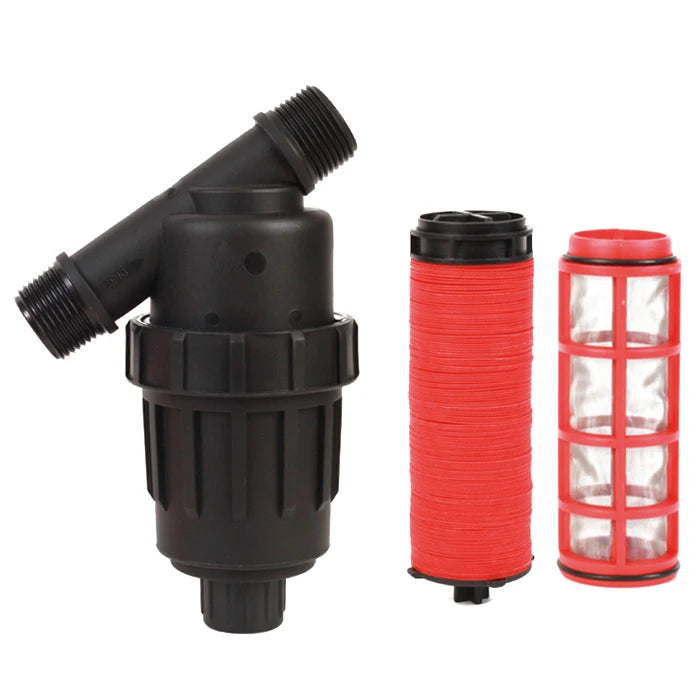

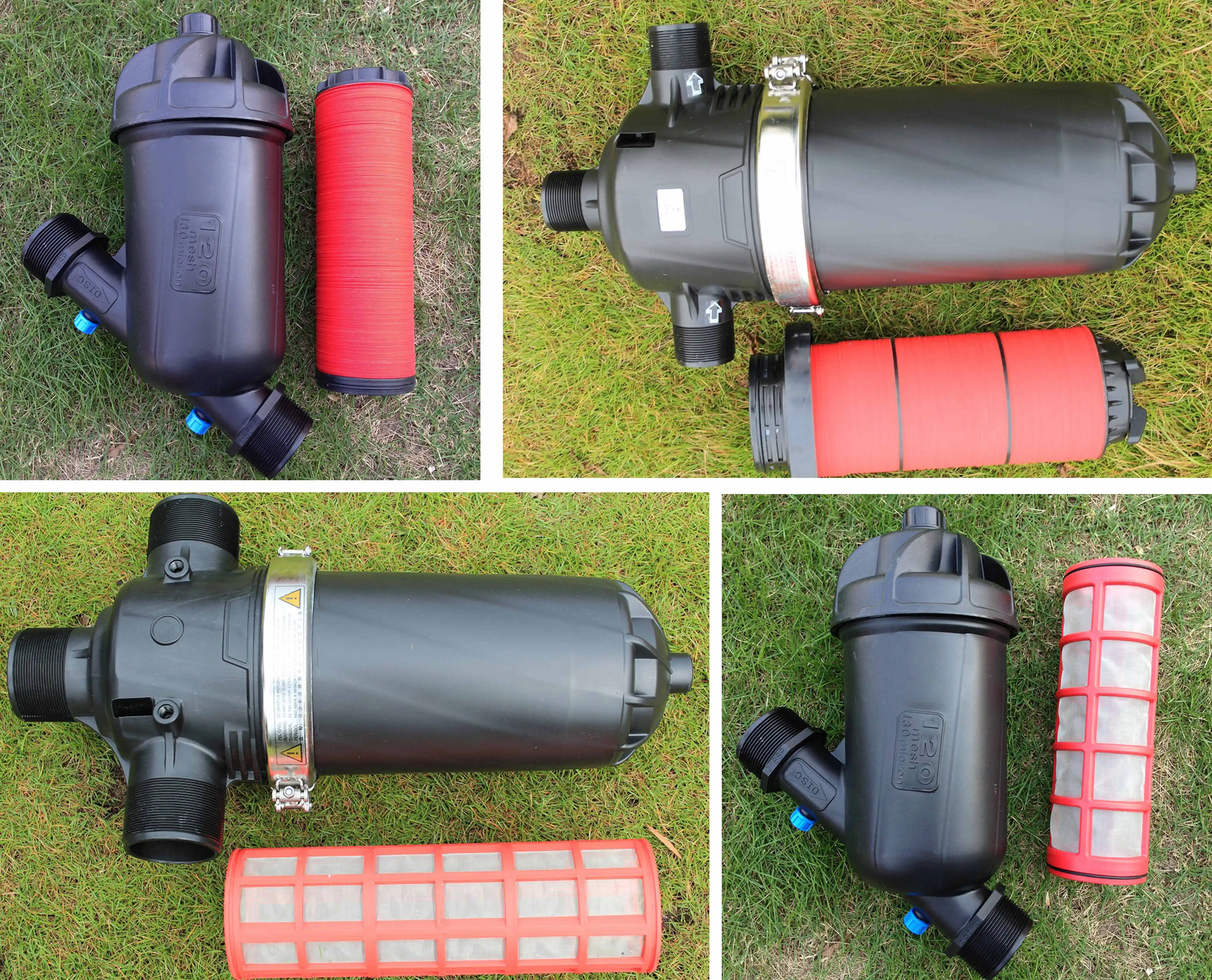

2. There are two options for inner core of filter, namely stainless steel mesh and plastic disc. They can be separately used or for second-stage filter station.

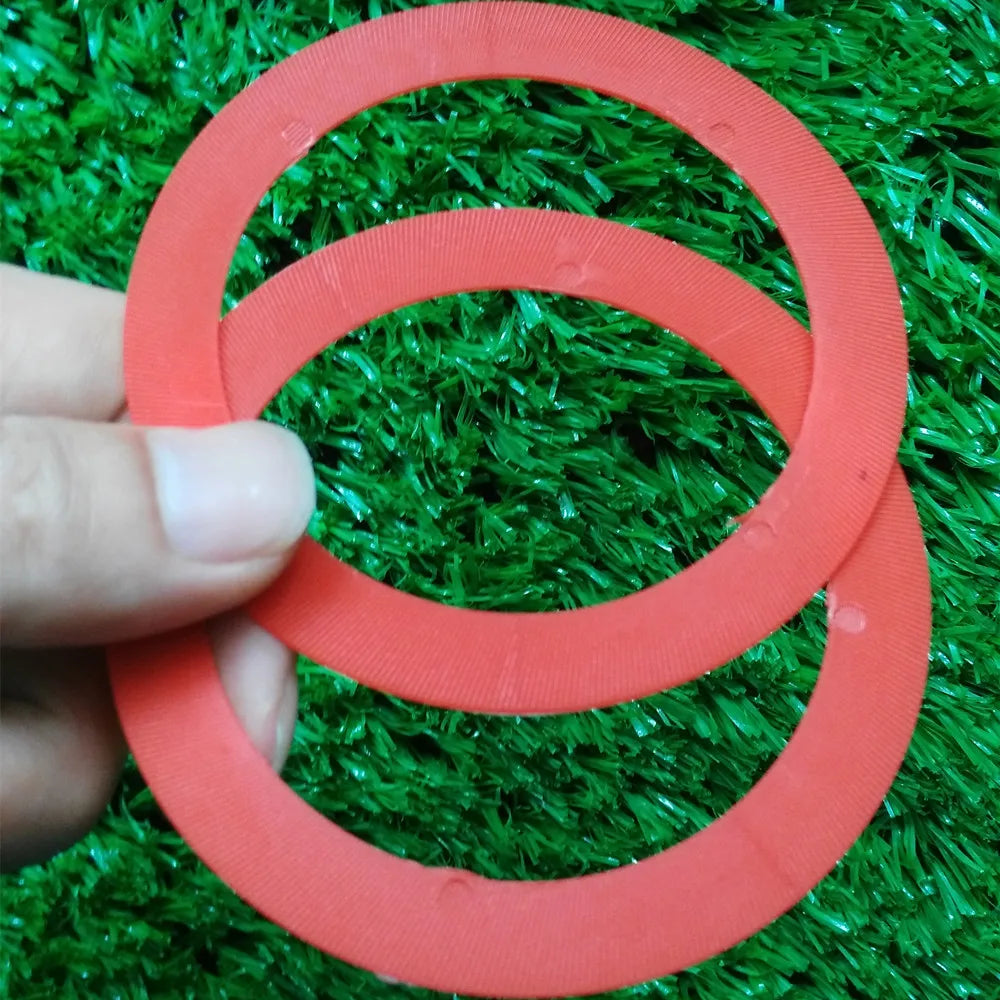

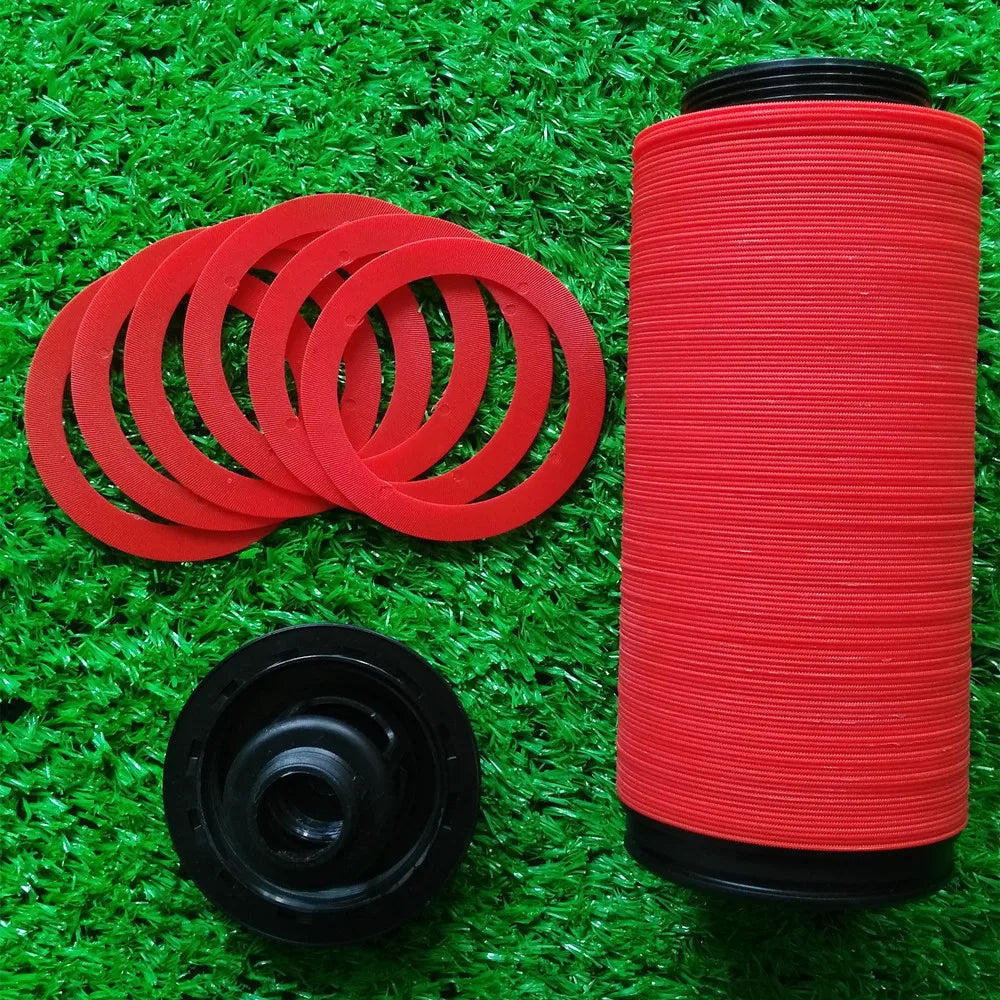

1) For disc filter, a certain amount of round discs are overlapped and locked to form a cylindrical filter unit. There are slanted rills with certain sizes and depth distributed in both sides of each disc. When these two discs are tightly pressed, interlaced rills form the filter units. Thus, organic and inorganic impurities in water are blocked outside of filter unit, and clear water flows out after filtration.

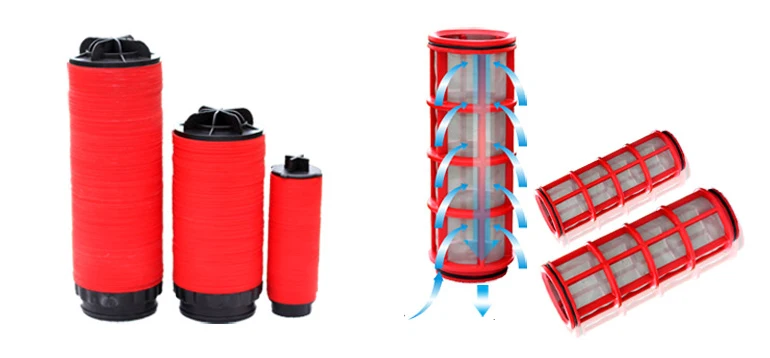

2) Screen filter is a filtering system made up of a layer of stainless steel mesh. Impurities in water are blocked in filtering screen, and clear water flows out through filtering screen.

Photo	Product code	Size	Qty/Bag (Pcs)	Qty /Ctn (Pcs)	Ctn size(cm)	G.W(kg)
	PRD025FMY	3/4'', length:180mm, 0.28kg,Flow rate 5m3/h,Max. pressure 6 bar	1	45	54*35*28	13
	PRD032Y	1’’ ,Length:180mm, 0.28kg,Flow rate 6m3/h, Max. pressure 6 bar	1	45	54*35*28	14
	PRD025FMY	3/4’’,length:0.28kg,Flow rate 5m3/h, Max. pressure 6 bar	1	45	54*35*28	14
	PRD025YN	3/4'',Size:180x180x100mm ,0.39kg,Flow rate 6m3/h,Max. pressure 8 bar	1	40	54*35*28	17
	PRD032YN	1’’,Size: 180x180x100mm, 0.39kg,Flow rate 6m3/h,Max. pressure 8 bar	1	40	54*35*28	17
	PRD040Y	1-1/4",Size:250x220x120mm,0.96kg,Flow rate 8m3/h,Max. pressure 8 bar	1	12	54*35*28	13
	PRD050Y	1-1/2",Size:250x220x120mm, Flow rate 10m3/h,Max. pressure 8 bar	1	12	54*35*28	13
	PRD063Y	2",Size:290x260x150mm,1.35kg,Flow rate18m3/h,Max. pressure 8 bar	1	7	54*35*28	12
	PRD075Y	2-1/2",Size:290x260x150mm,1.35kg, Flow rate 18m3/h,Max. pressure 8 bar	1	5	54*35*28	9
	PRD040T	1-1/4",Size: 270x210x135m,1.02kg,Flow rate 10m3/h,Max. pressure 8 bar	1	10	54*35*28	11
	PRD050T	1-1/2", 270x210x135mm,1.11kg,Flow rate 10m3/h,Max. pressure 8 bar	1	10	54*35*28	12
	PRD063T	2",Size:270x210x135mm,1.11kg,Flow rate 10m3/h,Max. pressure 8 bar	1	10	54*35*28	15
	PRS025Y	3/4'',Length:180mm, 0.2kg,Flow rate 5m3/h,Max. pressure 6 bar	1	45	54*35*28	10
	PRS032Y	1’’ Length:180mm,0.22kg,Flow rate 6m3/h,Max. pressure 6 bar	1	45	54*35*28	10
	PRS025FMY	3/4’’, Length:180mmFlow rate 5m3/h, Max. pressure 6 bar	1	45	54*35*28	11
	PRS025YN	3/4'', Size: 180x180x100mm,0.28kg Flow rate 6m3/h, Max. pressure 8bar	1	40	54*35*28	12
	PRS032YN	1’’ ,Size:180x180x100mm, 0.28kg Flow rate 6m3/h, Max. pressure 8 bar	1	40	54*35*28	12
	PRS040Y	1-1/4",Size:250x220x120mm, 0.7kg, Flow rate 8m3/h, Max. pressure 8 bar	1	12	54*35*28	9
	PRS050Y	1-1/2",Size:250x220x120mm, 0.7kg, Flow rate 10m3/h, Max. pressure 8 bar	1	12	54*35*28	9
	PRS063Y	2",Size:290x260x150mm,1.0kg, Flow rate 18m3/h, Max. pressure 8 bar	1	7	54*35*28	8
	PRS075Y	2-1/2",Size:290x260x150mm, 1.0kg, Flow rate 18m3/h, Max. pressure 8 bar	1	7	54*35*28	8
	PRS040T	1-1/4",Size: 270x210x135m,0.75kg, Flow rate 10m3/h, Max. pressure 8 bar	1	10	54*35*28	9
	PRS050T	1-1/2", 270x210x135mm,0.76kg Flow rate 10m3/h, Max. pressure 8 bar	1	10	54*35*28	9
	PRS063T	2",Size:270x210x135mm,0.76kg, Flow rate 10m3/h, Max. pressure 8 bar	1	10	54*35*28	10

Hebei Plentirain Irrigation Equipment Technology Co.,Ltd. is a professional manufacturer in agricultural micro irrigation. Our team members entered the irrigation industry in 2010 and formally established the company in 2014. We are devoted to supplying high-quality products and satisfactory service to the clients under the brand name Plentirain. In 2015, the company passed ISO 9001:2015 quality management certification.

We provide one stop micro irrigation solutions. Our products cover the whole micro irrigation system, such as drip tape, dripline, PC on-line dripper, arrow dripper, fittings and accessories, screen & disc filter, PE layflat hose, rain spray tape, mini sprinklers.
