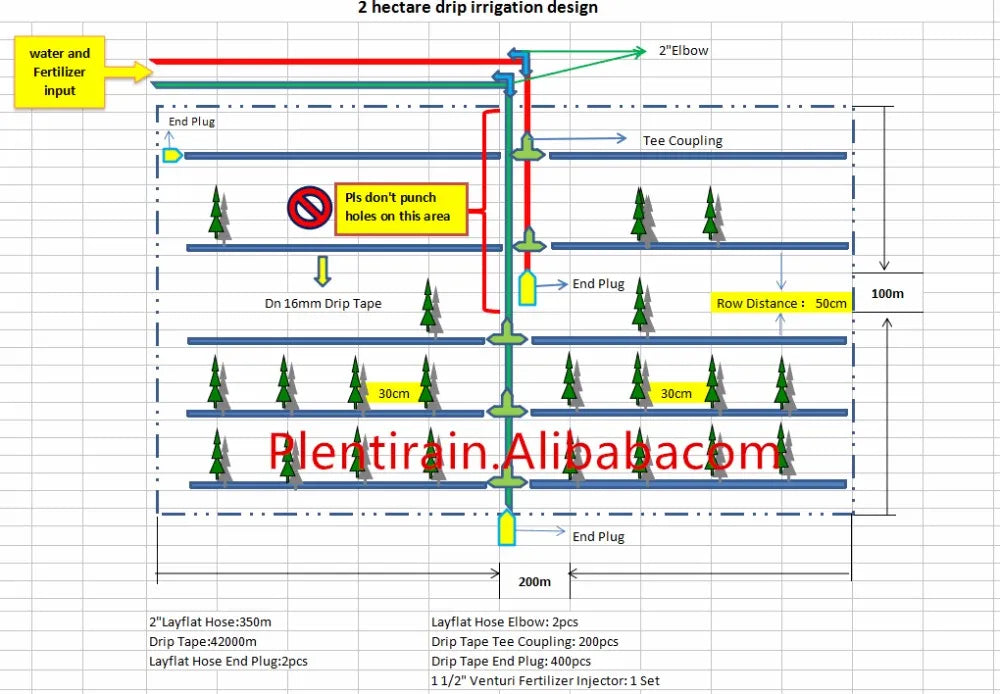

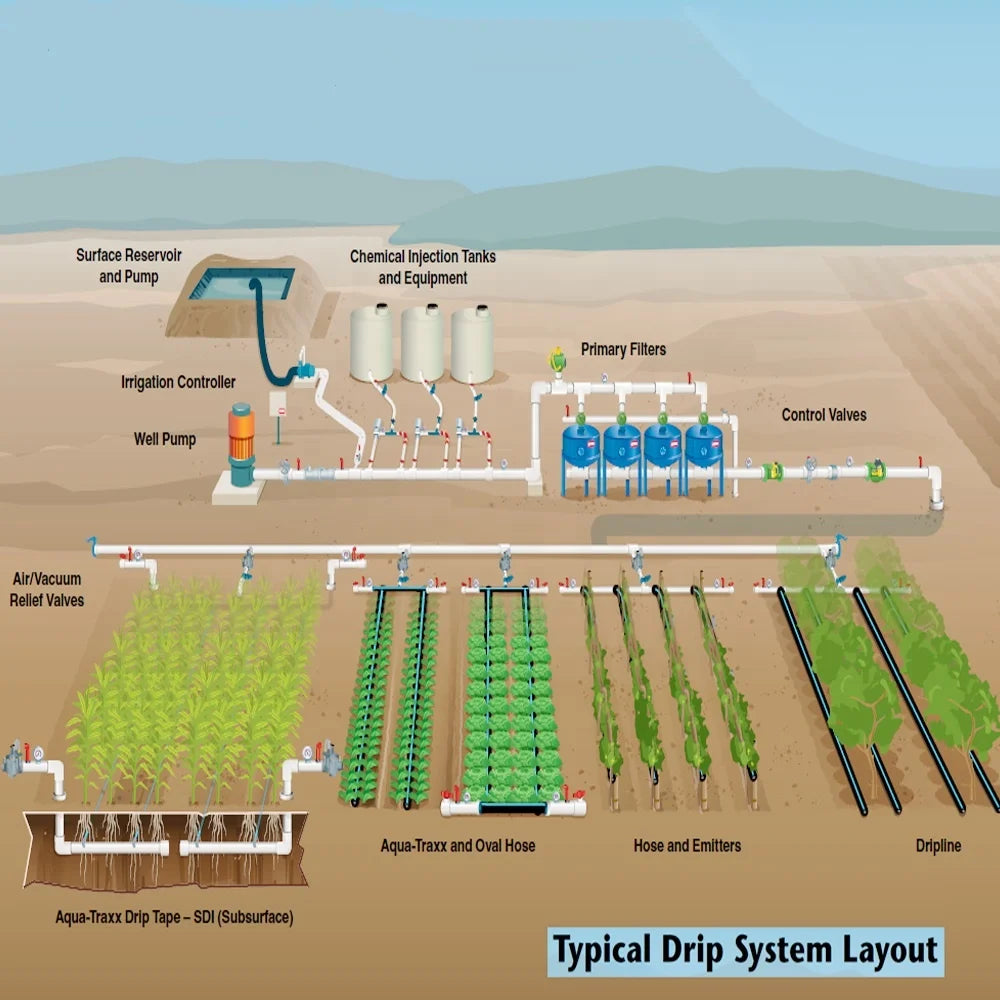

Designed Agriculture Drip Irrigation System for 2 Hectares
Designed agriculture drip irrigation system for 2 hectares

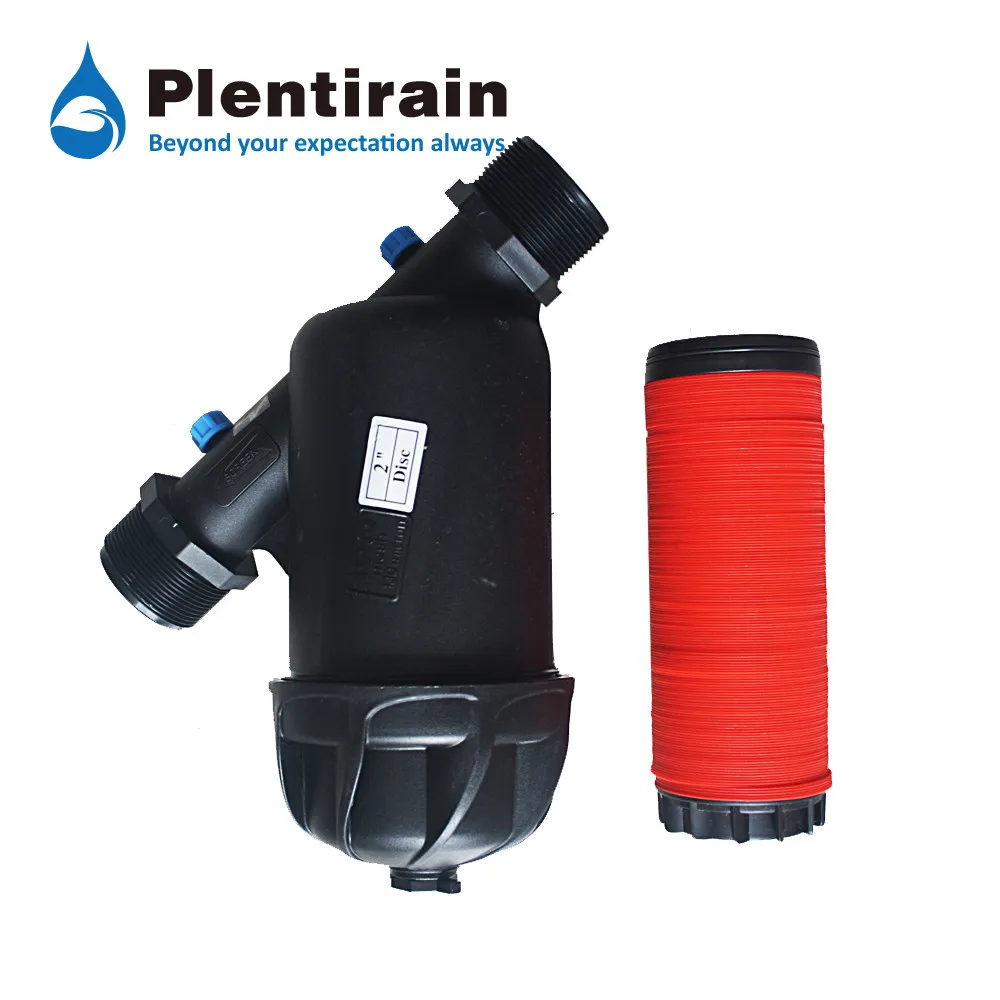

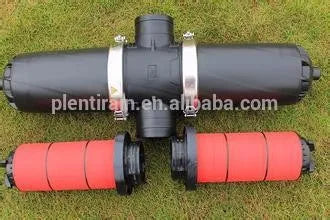

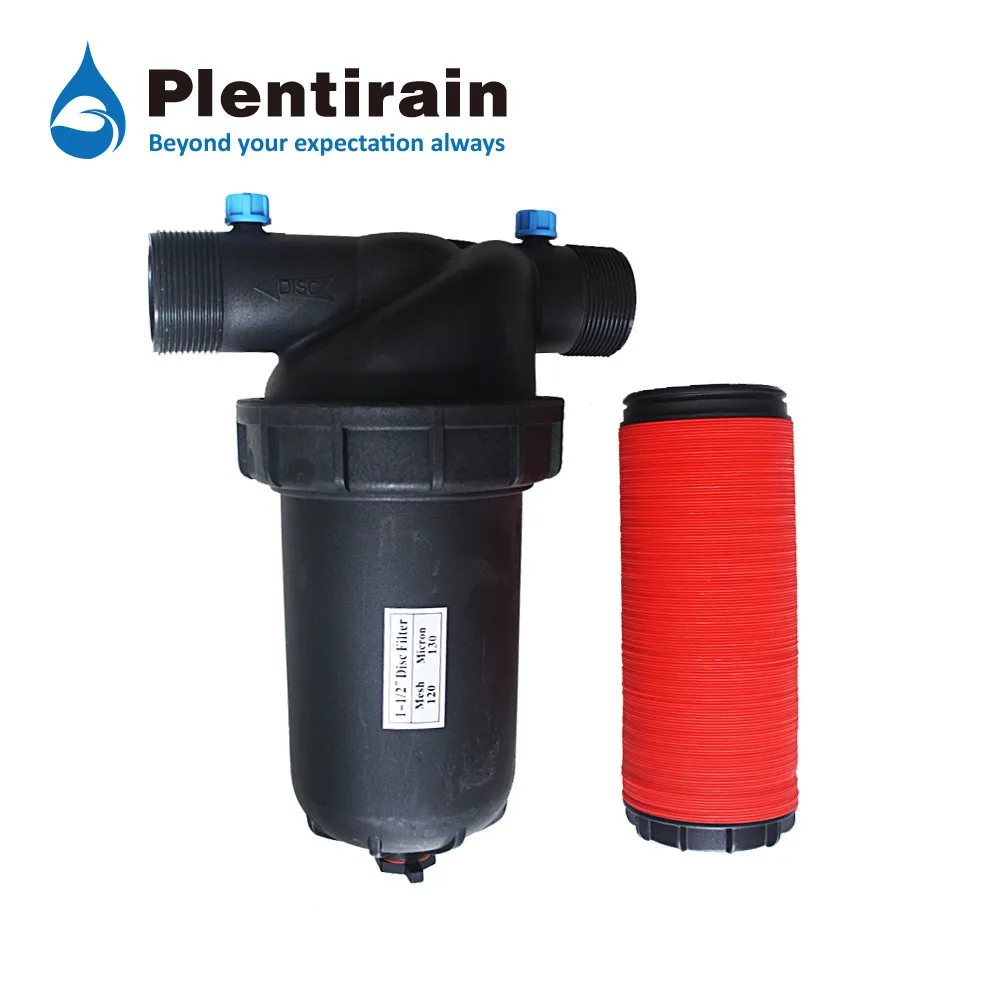

1,Flow Rate Disc Filter
1. Made from virgin modified polypropylene (PP), the filter body is strong ,durable, and resistant to pressure and impact.
2. There are two options for inner core of filter, namely stainless steel mesh and plastic disc. They can be separately used or for second-stage filter station.
1) For disc filter, a certain amount of round discs are overlapped and locked to form a cylindrical filter unit. There are slanted rills with certain sizes and depth distributed in both sides of each disc. When these two discs are tightly pressed, interlaced rills form the filter units. Thus, organic and inorganic impurities in water are blocked outside of filter unit, and clear water flows out after filtration.
2) Screen filter is a filtering system made up of a layer of stainless steel mesh. Impurities in water are blocked in filtering screen, and clear water flows out through filtering screen.

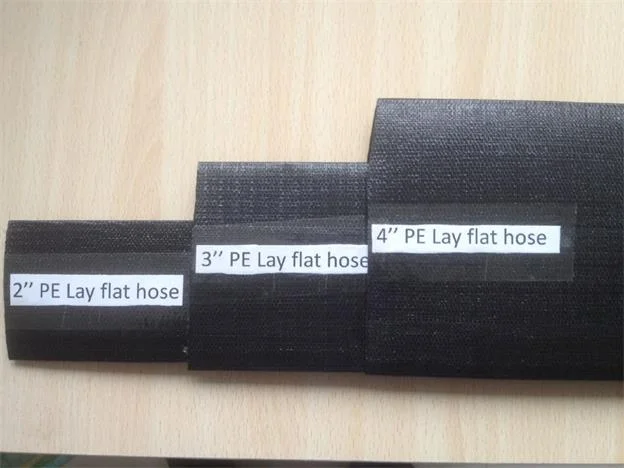

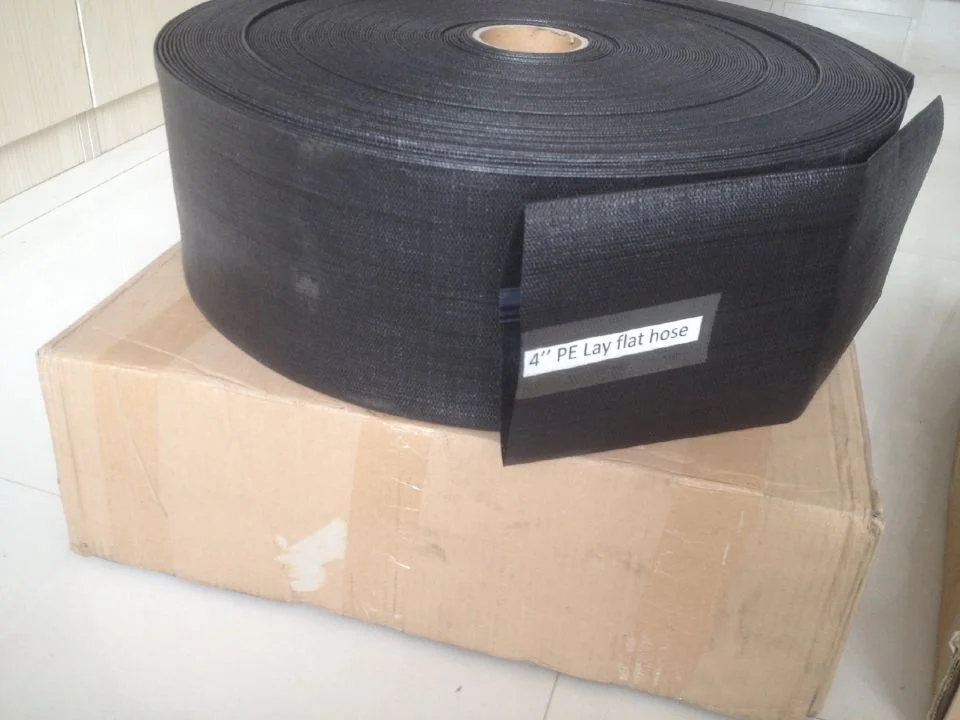

2, Main Line

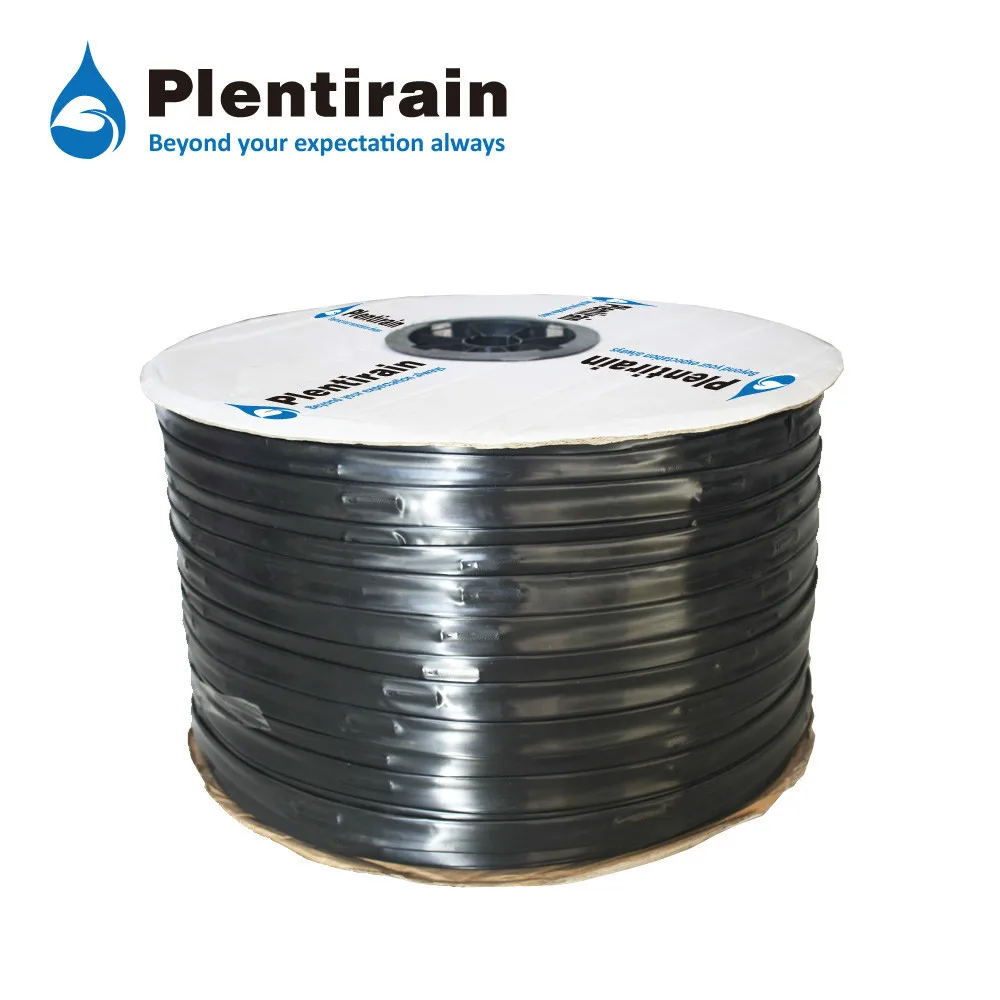

3,Flat Emitter Drip Tape
Advantage of Our Drip Tape:
* Producted by post forming technics.
* Up-to-date wide and long runners, fully turbulence and resistance to clogging.
* Advanced material is used to prevent it from being blocked and aged.
* Less water-head loss along the travel of water, longer spead length.
* The price of Drip irrigation drip tape is cheap because we have our own factory.
* The product can be widely used, kinds of specifications can meet the needs of different customers.
* The strength of anti-machine is good,and it is easy to be laid down by mechanization.
* It is light and easy to arrange and to collect in the field.
Features
1 The price of Drip irrigation drip tape is cheap because we have our own factory.
2 The product can be widely used, kinds of specifications can meet the needs of different customers.
3 The strength of anti-machine is good,and it is easy to be laid down by mechanization.
4 It is light and easy to arrange and to collect in the field.
| Product Type: | Drip Tape with Emitter Inside |
| Material: | 100% new material |
| package: | Flat |
| Technics: | Extruded with Emitter inside |
| Feature: | Eco-nomic, Save water, Other |
| Thickness: | 0.18-0.5mm |
| Color: | Black |
| Length: | 800m/1000m/1500m/2000m |
| Flow rate (L/H) | 1.38L/H,2.0L/H,3.0L/H |
| Spacing (cm) | 10;15;20;30;40........ |

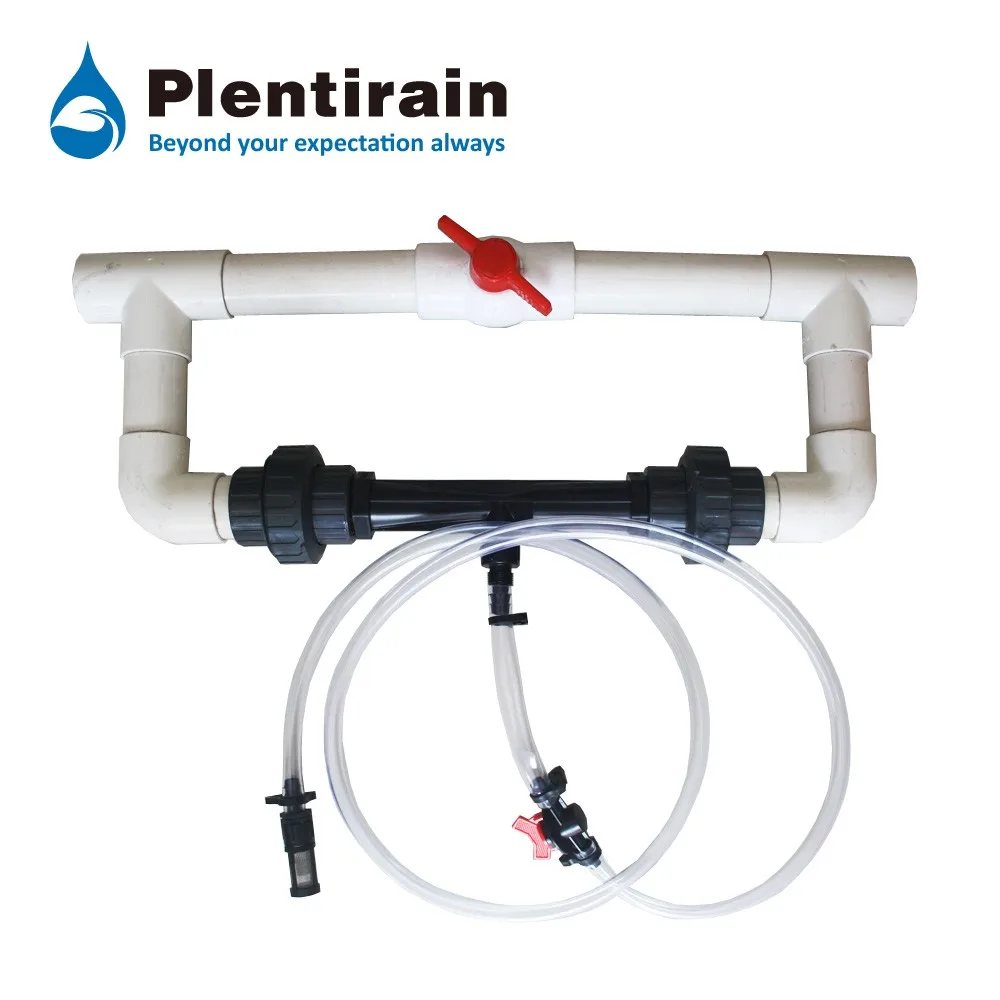

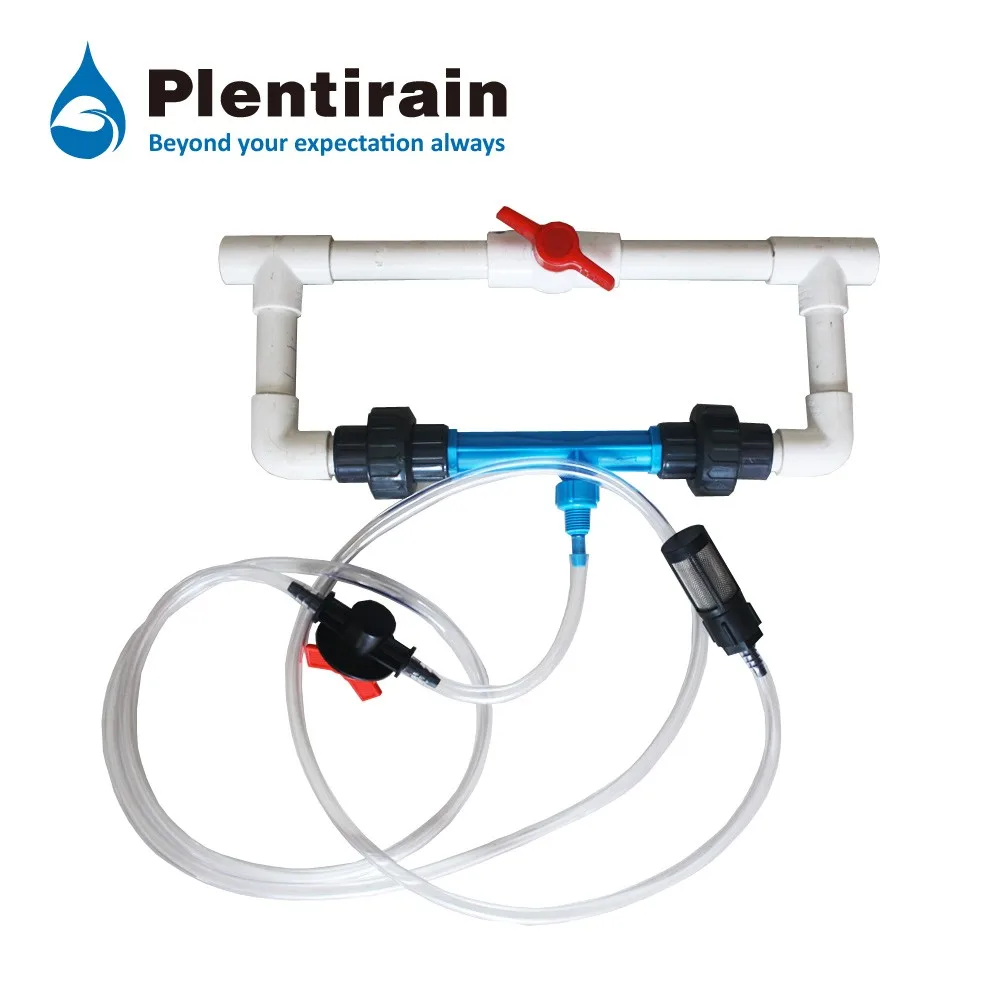

4,Venturi Fertilizer Injector
*It operated with principle of pressure difference. When the control valve is turned down, the pressure will be different before and after the valve, thus water flow to low pressure from high pressure. With vacuum suction in fertilizer suction pipe, soluble fertilizers in fertilizer bucket is sucked to venturi and converged in main pipe for fertigation.
*Working pressure is low (2-4 Bar) without any booster pump.
*It is applicable for the fields with small irrigation areas, such as greenhouse and open field with small area.

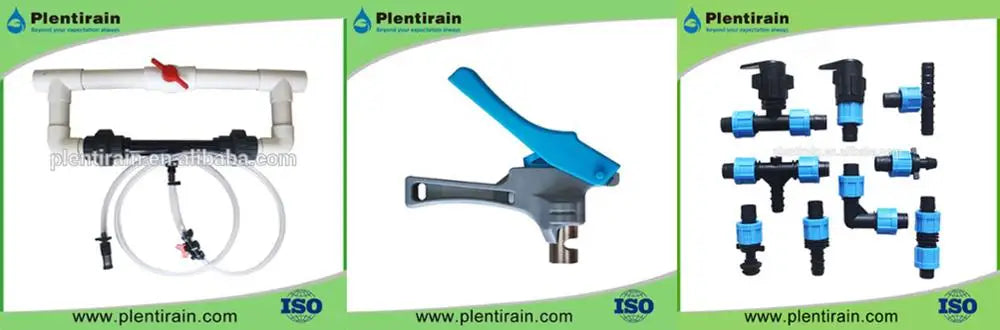

5, Fittings
Features:
1. Made from virgin Polypropylene (PP), chemical corrosion resistant, aging resistant and pressure resistant.
2. Applicable for Dn16 mm drip tape. Nut joints are applicable for the drip tapes with wall thickness ≤0.5 mm, and lock ring joints for the drip tapes with wall thickness ≤0.3 mm.
Plentirain welcone new and old customers, we are waiting for you all the time.
Hope we can service for you.
| FAQ |
1. Q:Where is your company located? How can I visit there?
A: Our factory is located in Shijiazhuang, Hebei Provice. Welcome to visit us.
2.Q: Can I get a sample and how long will it take?
A: Yes, we could offer the sample for free charge, you need bear the freight cost. Within 5 days will be sent out.
3. Q: What's your MOQ?
A: We will accept your order above USD 3000, and samples can be sent to you for testing.
4. Q: What kind of package for your products?
A: Carton, or based on your requirements.
5. Q: Whether my own customized products can be made?
A: Sure, we are glad to receive your customized order. Such as print your logo on the products or package will be well accepted.
6. Q: Can you supply product inspection certificate?
A: We can supply the certification for you, if needed.
7. Q: Can you delivery the goods to us by sea, by air, or by air express?
A: Of course, we can. But will not suggest shipping by sea, if the volume less than 1CBM.
8.Q: How long is your delivery time?
A: Generally it will take 15-20 days after 30% deposit been received.
9. Q: What's your payment term?
A: 30% paid before production as depisit, 70% paid against scanned B/L as balance, by T/T.
10. Q: How to solve the quality problem after received the goods.
A: Send the product photos to us by email, or send a sample of it to us by express. Once the problem has been confirmed, we will give you a satisfied solution.
