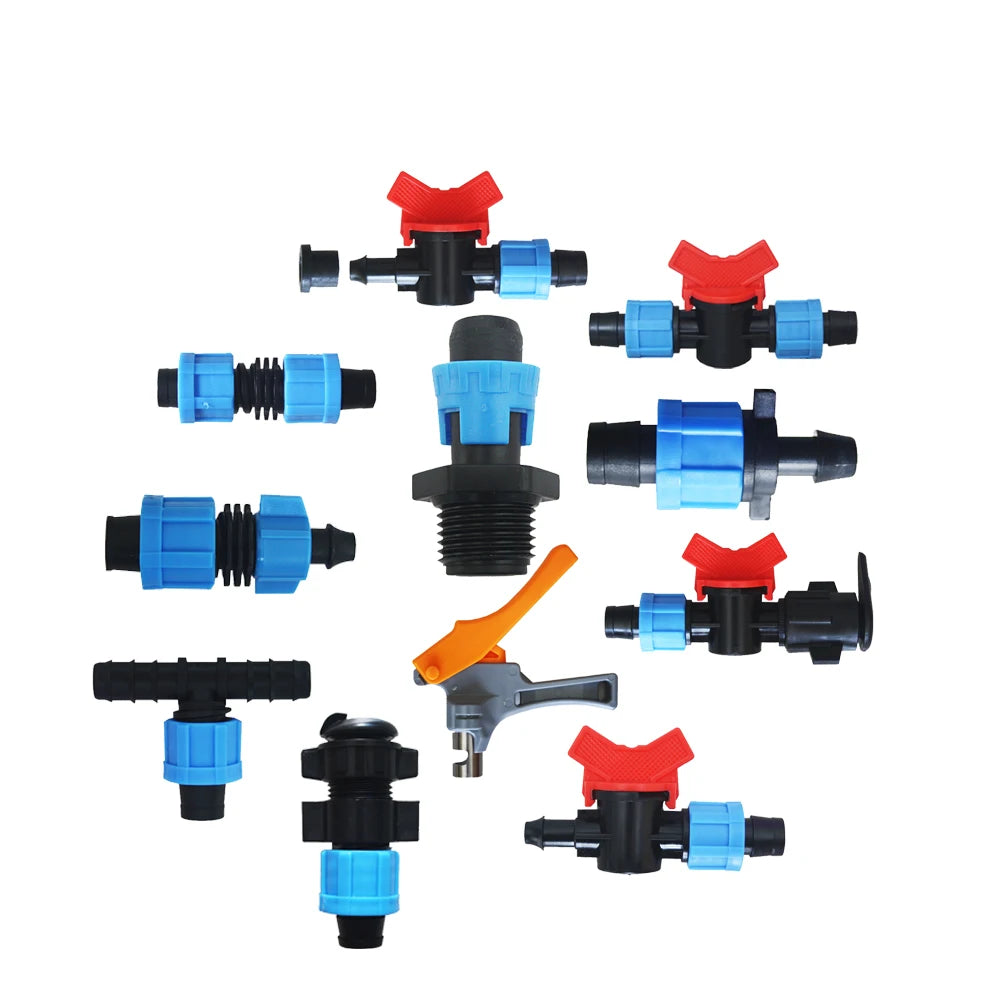

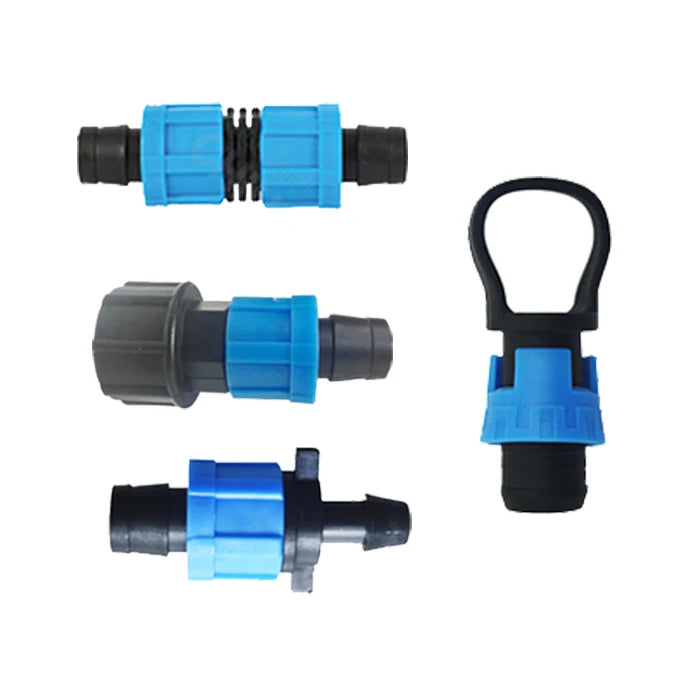

Drip Tape Fittings and Accessories for the Drip Irrigation Tape Connectors
Drip tape fittings and accessories for the drip irrigation tape connectors
| PRODUCT SPECIFICATION |
Features:
1. Made from virgin Polypropylene (PP), chemical corrosion resistant, aging resistant and pressure resistant.
2. Applicable for Dn16 mm drip tape. Nut joints are applicable for the drip tapes with wall thickness ≤0.5 mm, and lock ring joints for the drip tapes with wall thickness ≤0.3 mm.
|
Photo |
Product code |
Size |
Qty/Bag Qty (Pcs) |
Qty /Ctn (Pcs) |
Ctn size(cm) |
G.W(kg) |
 |
TO021715 | Lock Ring Offtake for Driptape,Dn17*15 | 100 | 1800 | 54*35*28 | 12 |
| TO021715R | PVC Offtake for Driptape,Dn17*15 | 100 | 1300 | 54*35*28 | 13 | |
| LC0217 | Lock Ring Coupling for Driptape,Dn17 | 100 | 1400 | 54*35*28 | 12 | |
| BC021617 | Barb Lock Ring Coupling for Driptape,Dn17*16 | 100 | 1600 | 54*35*28 | 11 | |
| MT021712 | Lock Ring offtake with male thread Dn17*1/2"BSP | 100 | 1600 | 54*35*28 | 11 | |
| TP0317 | Lock Ring Tape end plug,Dn17 | 100 | 1800 | 54*35*28 | 12 | |
| LC0117 | coupling for tape, Dn17*Dn17 | 100 | 800 | 54*35*28 | 15 | |
| LC0120 | coupling for tape, Dn22*Dn22 | 50 | 500 | 54*35*28 | 14 | |
| TO011706 | Drip tape offtake, Dn17*6 (Punch hole 4mm) | 100 | 1500 | 54*35*28 | 17 | |
| TO011712 | Drip tape offtake, Dn17*12 (Punch hole 10mm) | 100 | 1300 | 54*35*28 | 13 | |
| PO0117 | PVC Offtake for Tape with rubble Ring, Dn17 (Punch hole 16mm) | 100 | 1100 | 54*35*28 | 16 | |
| FT011712 | female thread coupling for tape,Dn17*1/2'' | 100 | 900 | 54*35*28 | 13 | |
| FT011734 | female thread coupling for tape,Dn17*3/4'' | 100 | 800 | 54*35*28 | 13 | |
| LO0117 | tape offtake,Dn17 | 100 | 1000 | 54*35*28 | 15 | |
| BC011617 | reducercoupling for pipe, Dn17*16 | 100 | 700 | 54*35*28 | 13 | |
| BC012020 | reducercoupling for pipe, Dn22*20 | 100 | 600 | 54*35*28 | 12 | |
| CT0217 | reducer offtake for pipe, Dn17 | 100 | 1100 | 54*35*28 | 18 | |
| MT011712 | male thread offtake for tape,Dn17*1/2'' | 100 | 1000 | 54*35*28 | 15 | |
| MT011734 | male thread offtake for tape,Dn17*3/4'' | 100 | 600 | 42*28*21 | 15 | |
| FV0234 | Flush Valve, 3/4", 0.18bar | 100 | 900 | 54*35*28 | 7 | |
| CT0117 | reducer offtake for pipe,Dn17 | 100 | 800 | 54*35*28 | 17 | |
| ME011712 | male thread elbow for pipe,Dn17*1/2'' | 50 | 800 | 54*35*28 | 13 | |
| ME011734 | male thread elbow for pipe,Dn17*3/4'' | 50 | 700 | 54*35*28 | 12 | |
| CT0317 | Croco Offtake for PE layflat hose, Dn17 | 100 | 700 | 54*35*28 | 19 |

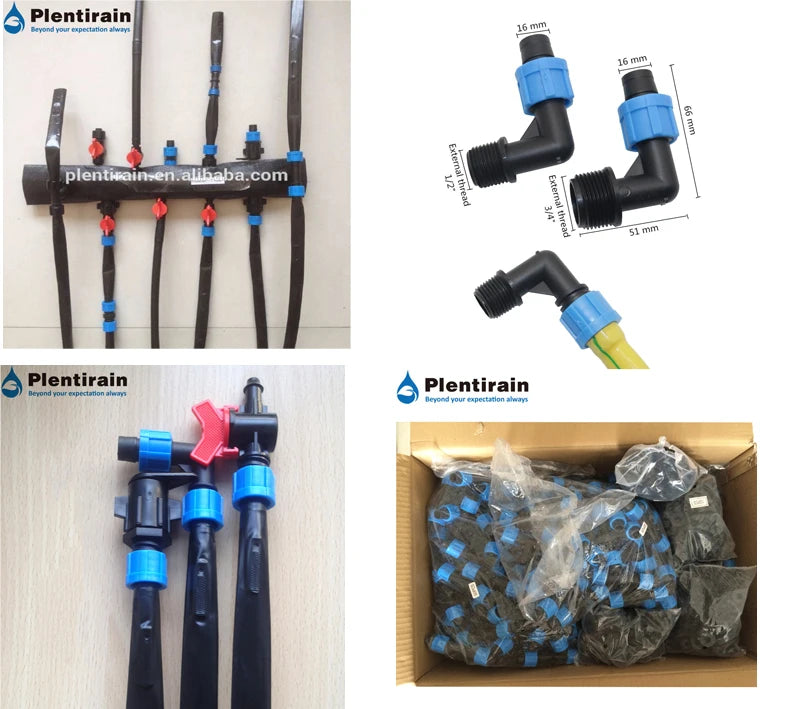

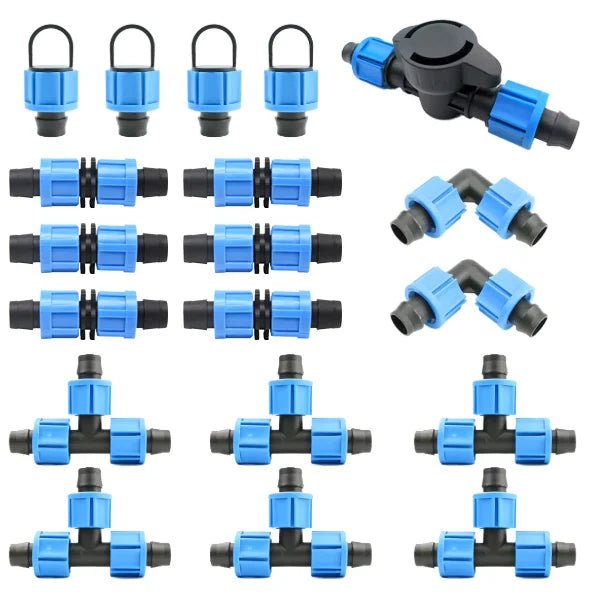

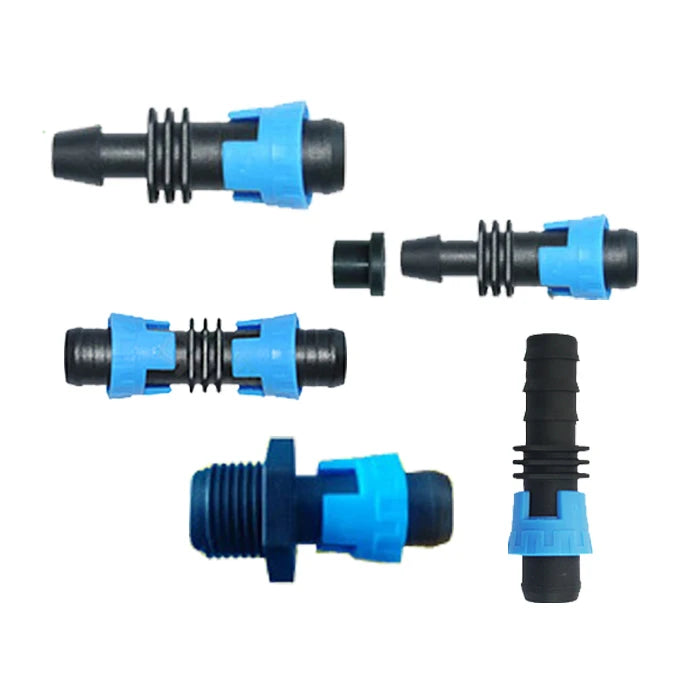

| PRODUCT PICTURES |
|
Qty/Bag Qty(Pcs): |
50 |
|
Qty /Ctn (Pcs): |
250/300/350/400/450/500 |
|
Ctn size(cm): |
54*35*28 |
| WHY CHOOSE US? |
| OUR CERTIFICATES |
| OUR FACTORY |
Hebei Plentirain Irrigation Equipment Technology Co.,Ltd. is a professional manufacturer and supplier in agricultural micro irrigation,i.e. drip irrigation and mini sprinkler irrigation. Founded in Sep.,2014, the company is devoted to supplying high-quality products and satisfactory service to the clients under the brand name Plentirain. It is located in Shijiazhuang city, only 1.5 hours’ bullet train away from Beijing, China.
The company is positioning itself on middle and high-end market. Plentirain irrigation products are suitable for vegetable farm, row crop farm, vineyard, orchard, and greenhouse etc.
