PE Drip Irrigation Tape for Agricultural Drip Irrigation Water Saving Farm Irrigation Systems
PE drip irrigation tape for Agricultural drip Irrigation water saving farm Irrigation Systems

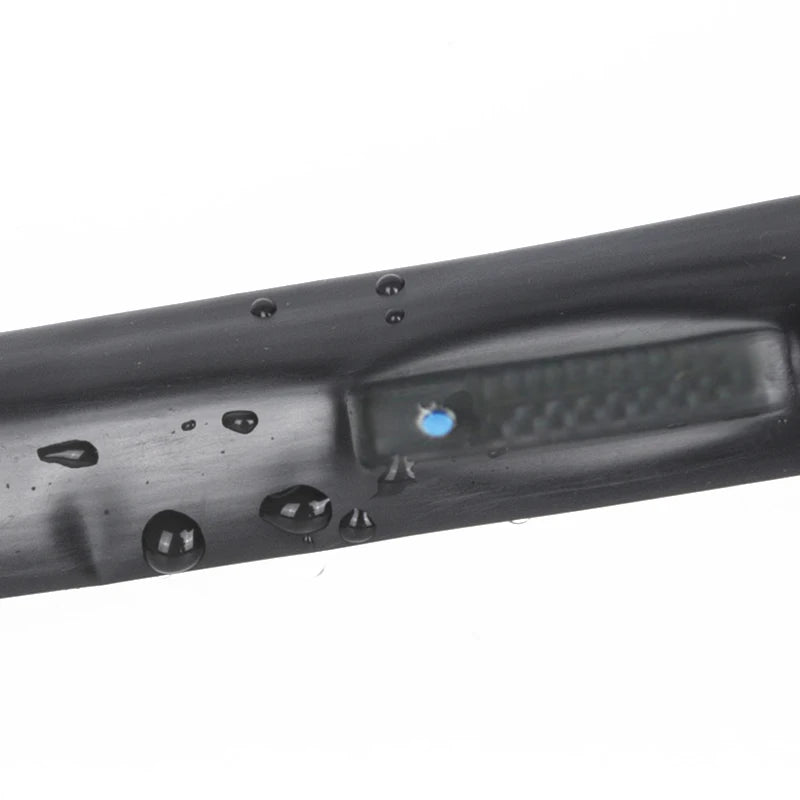

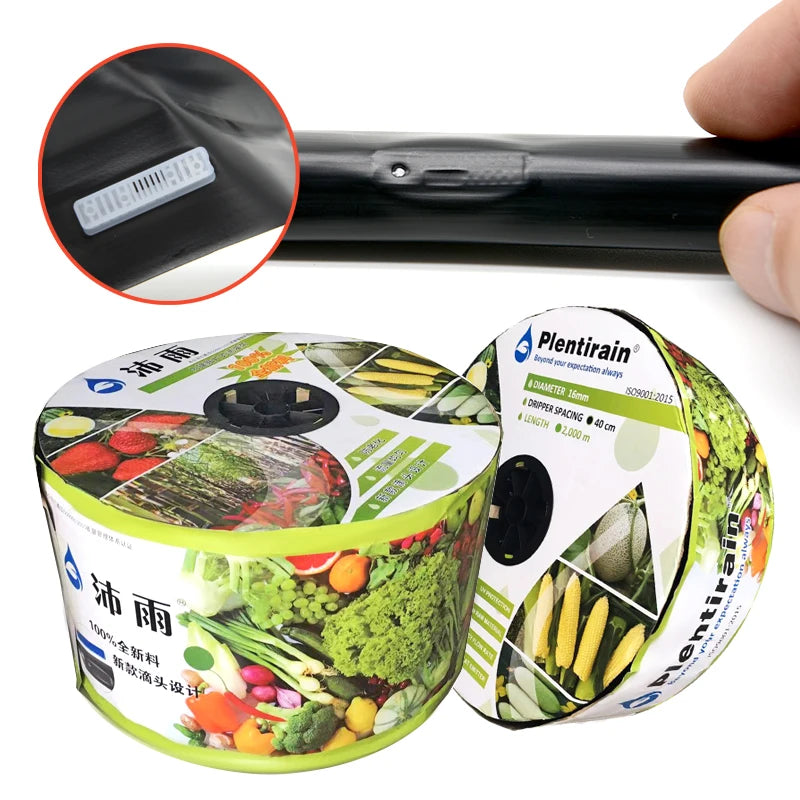

Plentirain Flat Drip line (Drip Tape) Adopt advanced flat dripper and high quality PE materials, bringing superior flow rate characteristics, high clogging resistance and excellent cost performance ratio. Wall thickness from 6mil to 16mil (0.15m to 0.40mm), spacing from 10cm to 90cm, with flowrate 1.38L/H, 2L/H, 3L/H and 4L/H.
Characteristics
Ø virgin PE raw materials, ensuring the product quality and performance, anti-UV, anti-corrosion, and durability.
Ø recycling after use, friendly to the environment.

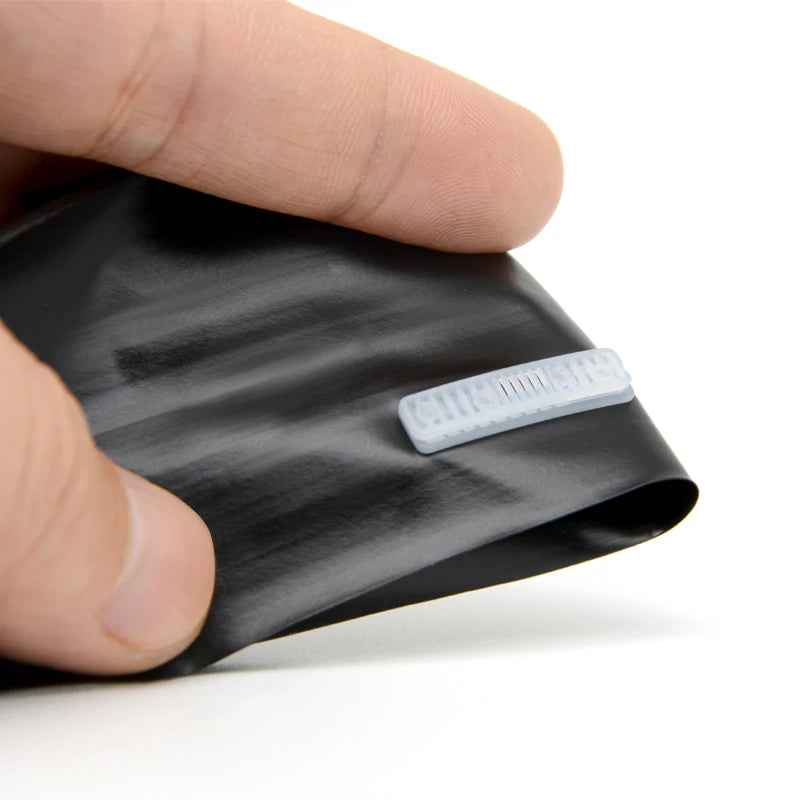

Ø Adopt advanced type of non-compensating flat dripper, bringing superior flow rate characteristics, high clogging resistance and excellent cost performance ratio.
Ø No breakage of each roll, ease of operational handling and convenient for mechanical laying.
Ø Economic solution for field crops, protected crops.
Ø Manufacturing uniformity: Dripline and drip tape production process complies with ISO9261. Inspection is applied to each roll on diameter, wall thickness, dripper spacing, bursting pressure. And flow rate, CV, emission uniformity, tensile strength, hydrostatic pressure and other items are tested routinely.
Ø Various wall thickness and emitter spacing to meet the requirements. Both thin wall and medium wall level tapes are available.
Clogging performance of the drippers is ensured by:
l Protective filter at the water input window
l Modern Asymmetrical Labyrinth Design
High water turbulence and wide water passages
Installation tips
1. When laying the drip line (drip tape) , the side with the dripper should be upside. The force should be uniform when stretched, and keep the drip line naturally straight.
2. Water entering the drip line (drip tape) must be processed by a filtration system of ≥120 mesh to prevent clogging.
3. When the drip line (drip tape) is used under the mulch film, small water droplets may be formed on the mulch due to sunlight and evaporation. The droplets will gather sunshine to form a high temperature spot, which will burn the drip line. the following measures can be adopted to prevent such problems:
*Try to use dark (black) mulch, or spread a thin layer of soil on the mulch above the drip line to prevent strong light from penetrating the mulch;
*Keep the ground level, or use other methods to prevent the plots and weeds from holding up the mulch film and forming small water droplets.
*Drip line should be as close as possible to the mulch when using, within 5mm is suggested;
*After irrigation, leave some water in the drip line.
4. When laying the drip line by machinery, please check whether there are iron slag, burrs and other problems which may hurt the drip line in the guide pulley, the guide ring and other parts. Should prevent the mechanical equipment from causing scratches and strains. The diameter of the guide pulley should not be less than 50mm.
5. The water supply pressure of the drip line system should be kept below 100Kpa
16mm drip tape specifications:
| PACKAGING & SHIPPING |
| OUR FACTORY |
| EXHIBITION SHOW |
| CUSTOMER WORLDWIDE |
| TRANSACTION PROCESS |
| TERMS AND CONDITIONS |
| Delivery time | 15-20 days after receiving the payment of 30% deposit. |
| Payment | -Irrevocable L/C at sight. -30% T/T in advance and 70% balance against copy of B/L. |
| Packing |

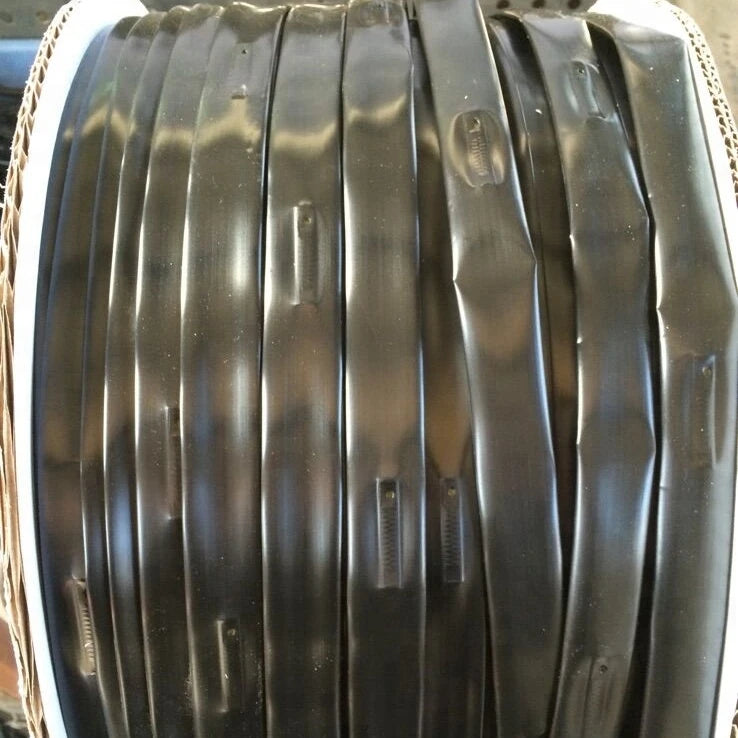

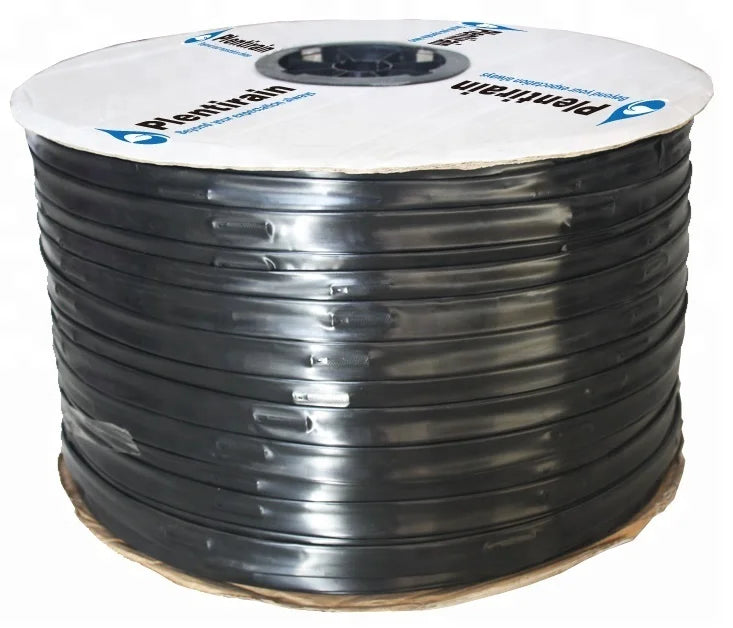

-Drip tape is packed into rolls with wrapping film covered outside. -Fittings are packed into paper cartons. -Pallet packing can be done if required. |
| Loading port | Tianjin port, Shanghai port, Ningbo port or customer's request |
| Warranty | 1 year quality warranty for all products. |
| Feedback |
-We sincerely invite you to leave feedback to us if you are interested in our product. -We will reply your inquiry or email within 24 hours. |
| After sales |
Any questions about products, please let us know directly by email or phone. We will meet your satisfaction. |
| WHY CHOOSE US? |
| OUR CERTIFICATES |
| FAQ |
1. Q:Where is your company located? How can I visit there?
A: Our factory is located in Shijiazhuang, Hebei Provice. Welcome to visit us.
2.Q: Can I get a sample and how long will it take?
A: Yes, we could offer the sample for free charge, you need bear the freight cost. Within 5 days will be sent out.
3. Q: What's your MOQ?
A: We will accept your order above USD 3000, and samples can be sent to you for testing.
4. Q: What kind of package for your products?
A: Carton, or based on your requirements.
5. Q: Whether my own customized products can be made?
A: Sure, we are glad to receive your customized order. Such as print your logo on the products or package will be well accepted.
6. Q: Can you supply product inspection certificate?
A: We can supply the certification for you, if needed.
7. Q: Can you delivery the goods to us by sea, by air, or by air express?
A: Of course, we can. But will not suggest shipping by sea, if the volume less than 1CBM.
8.Q: How long is your delivery time?
A: Generally it will take 15-20 days after 30% deposit been received.
9. Q: What's your payment term?
A: 30% paid before production as depisit, 70% paid against scanned B/L as balance, by T/T.
10. Q: How to solve the quality problem after received the goods.
A: Send the product photos to us by email, or send a sample of it to us by express. Once the problem has been confirmed, we will give you a satisfied solution.
