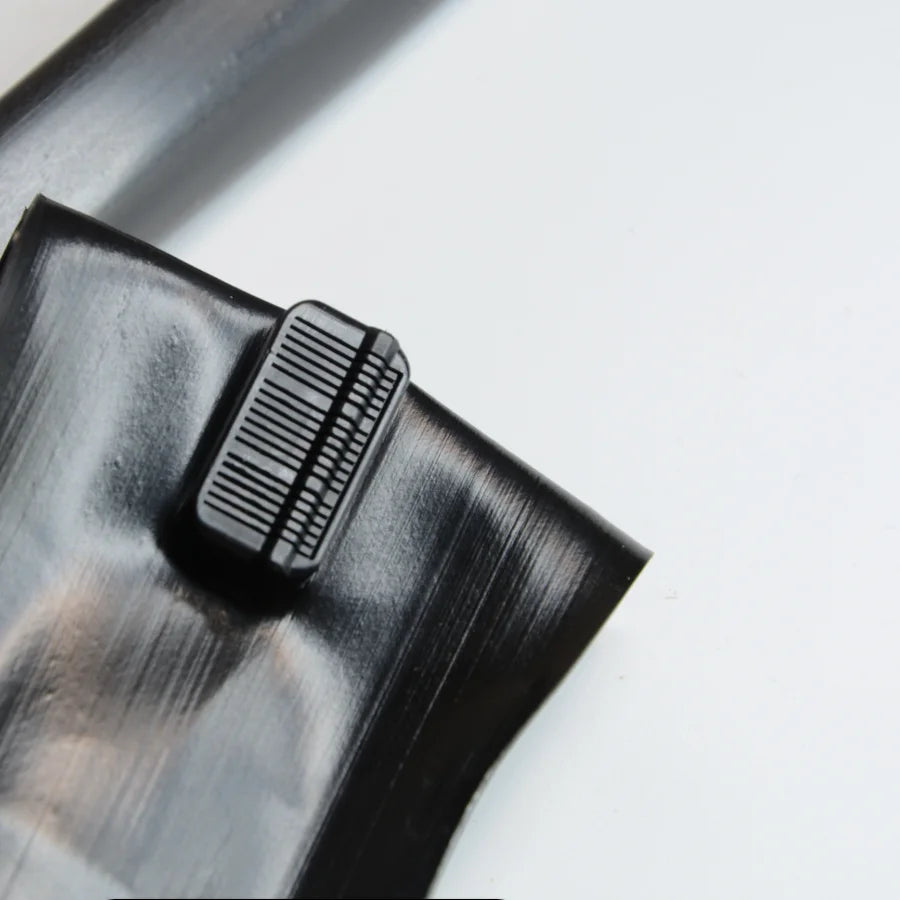

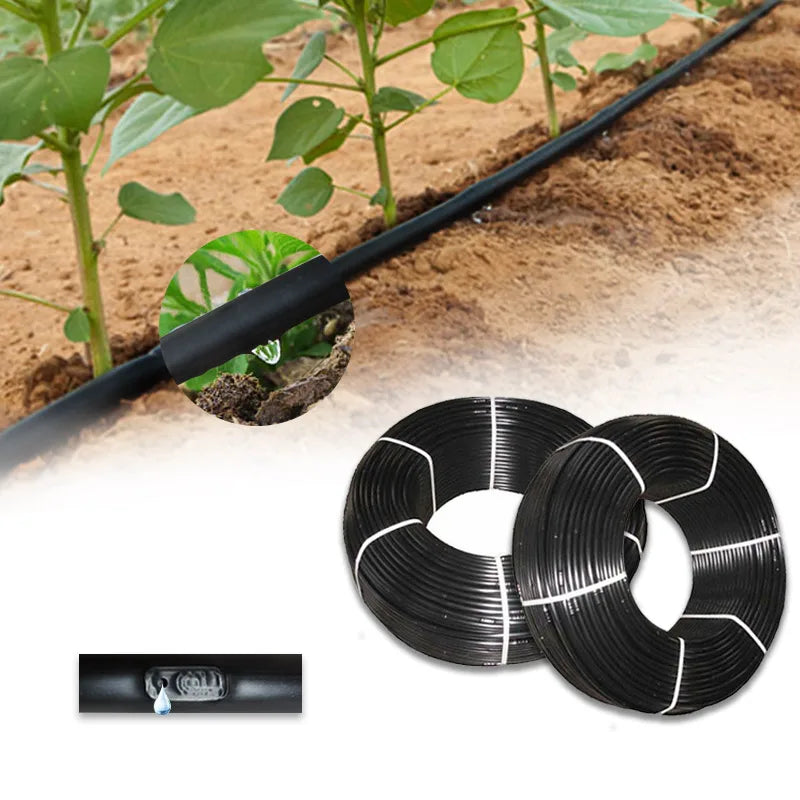

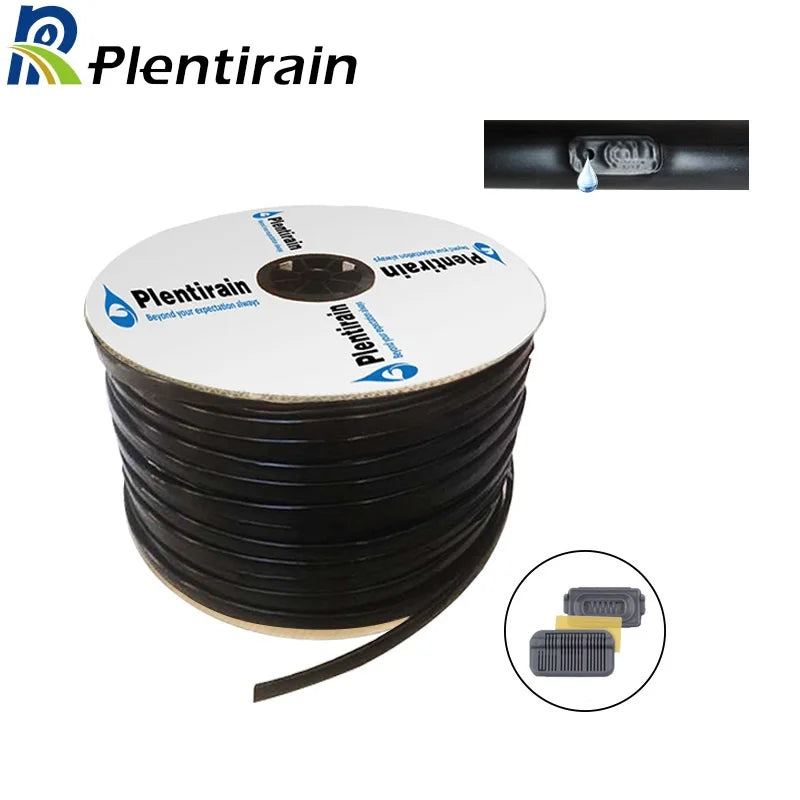

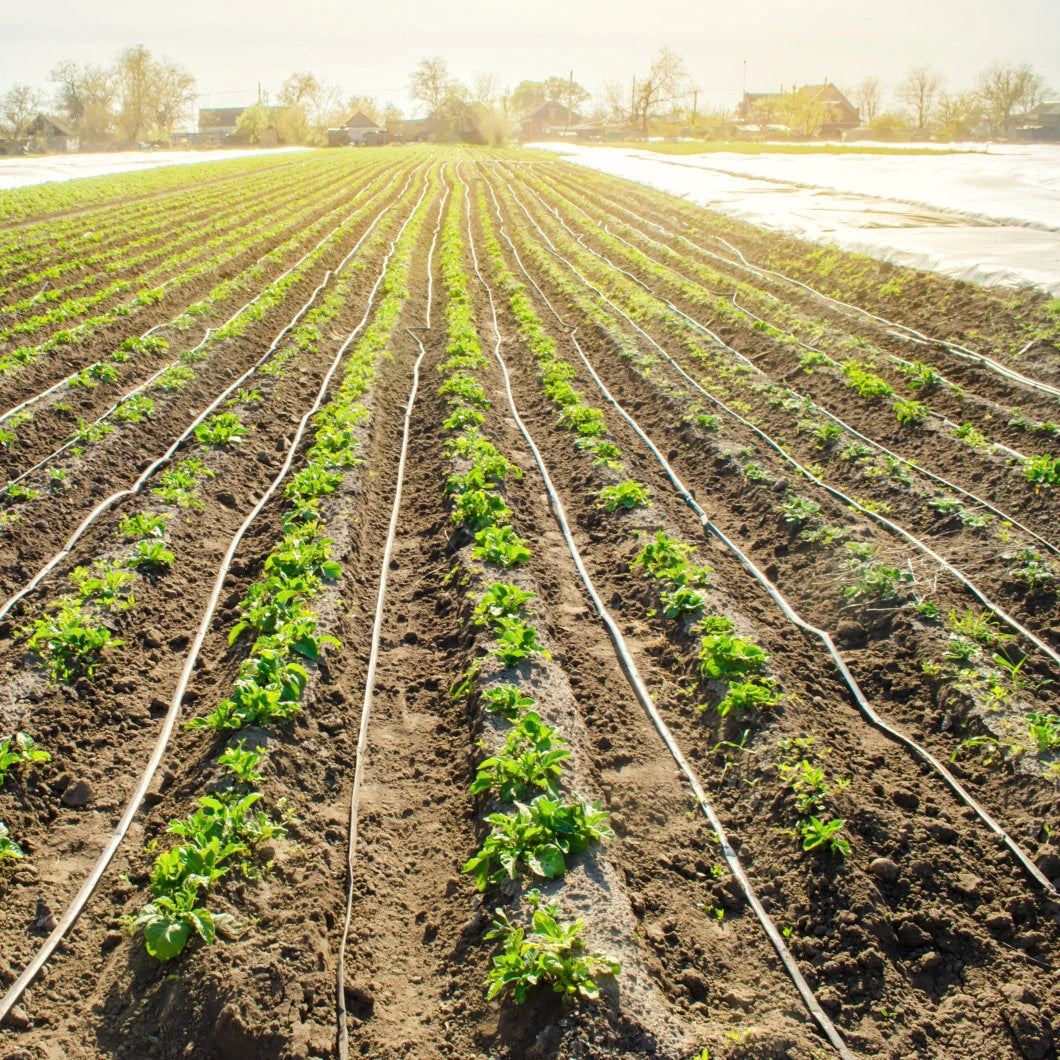

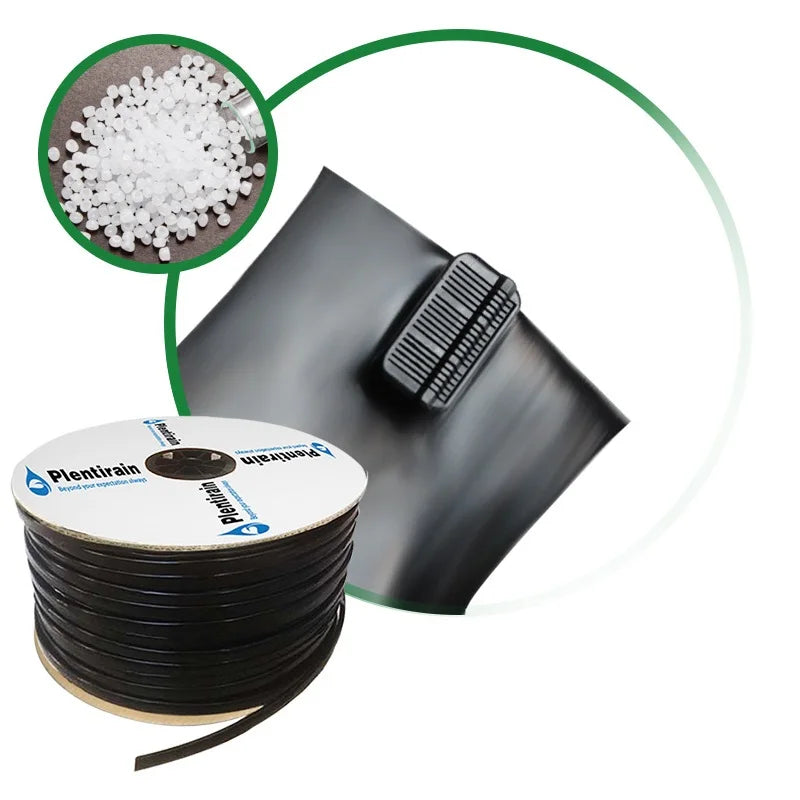

Pressure Compensating Pc Drip Tape 16mm Subsurface Drip Irrigation Pipe
INTRODUCTION
Product Introduction

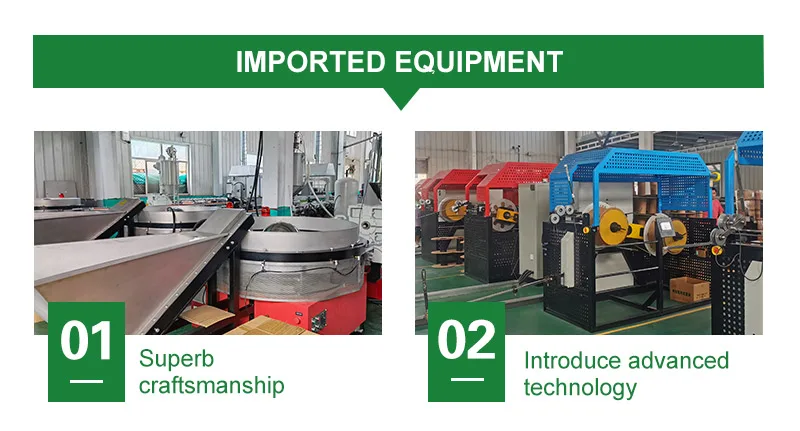

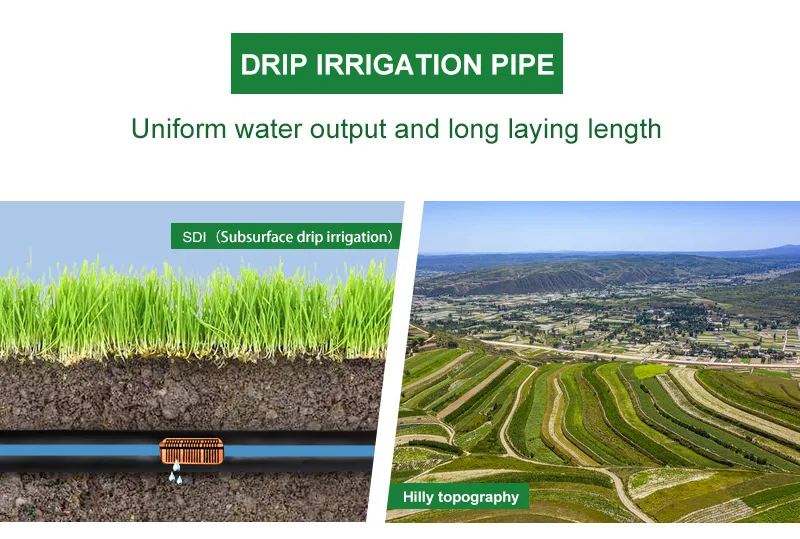

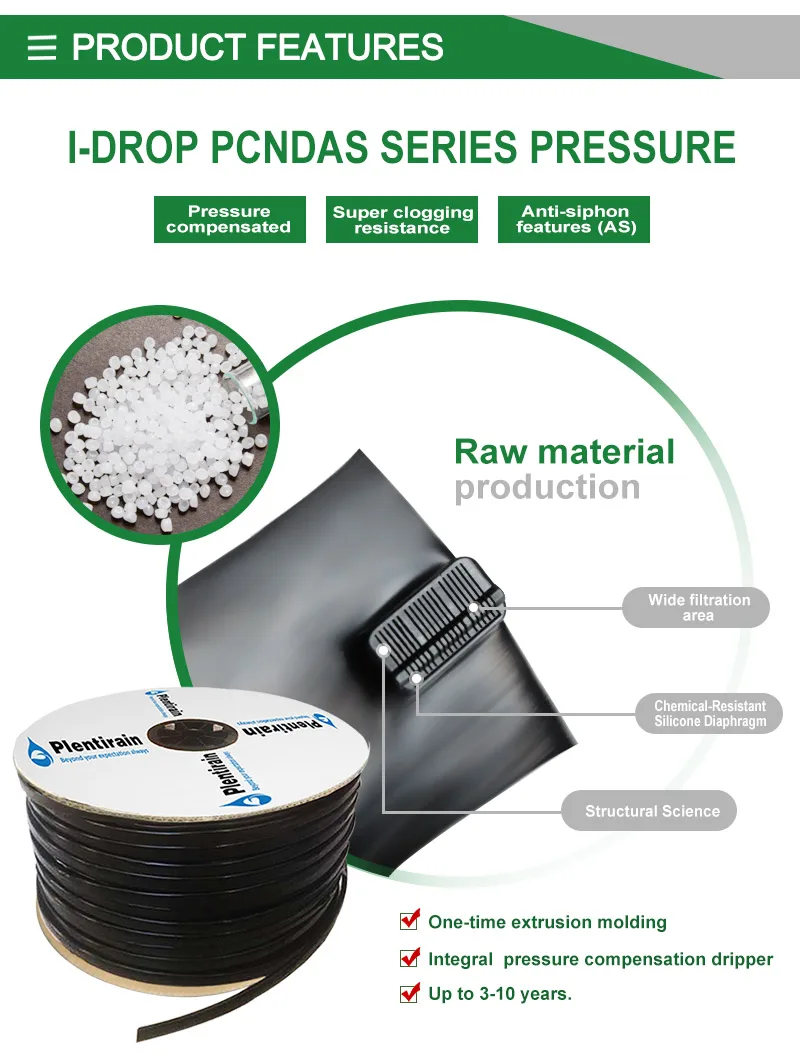

I-Drop PCNDAS series Pressure Compensating drip line can provide uniform flow rate when irrigating complex topographies, sloping lands and long distance row crops. The dripper and drip line production lines and technology are imported from Israel. The world technology ensures the great performance in high clogging resistance, Anti-Siphon (AS) , and Non-drain (ND). They are the ideal solutions for hilly sloping grown and subsurface drip irrigation (SDI) application.
Characteristics

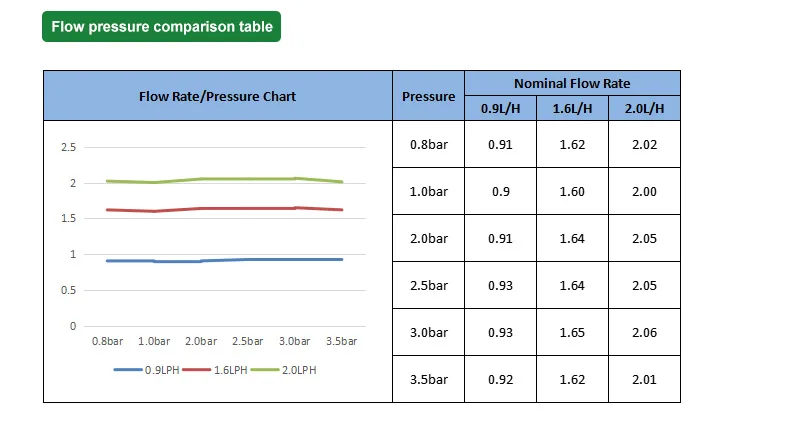

* Pressure compensated (PC): Maintain excellent discharge uniformity at a wide range of working pressure and various topography, such as the hilly land, sloping land and long row crop projects.

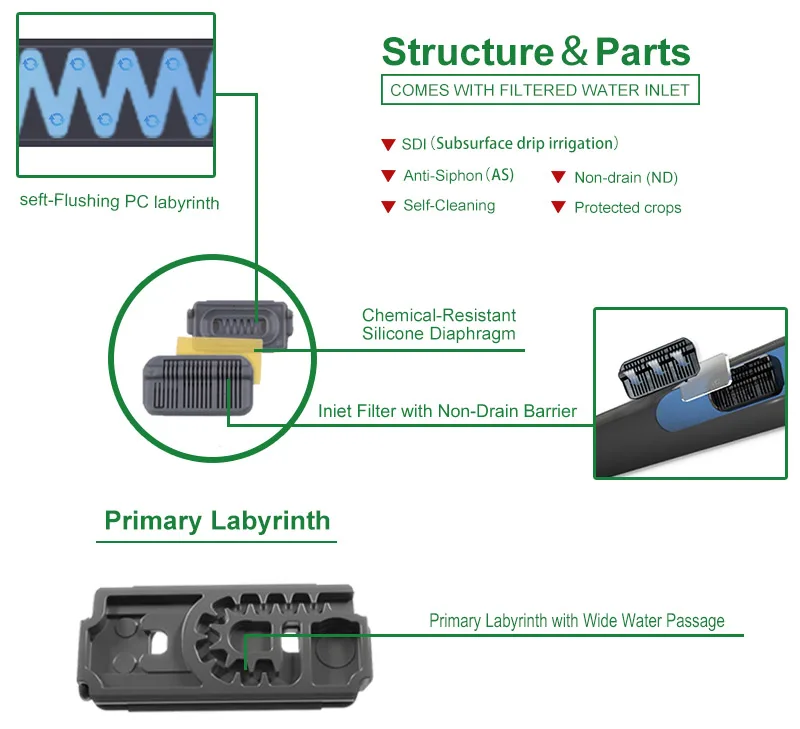

* Super clogging resistance: The wide filtration area, wide labyrinth passages and advanced self-cleaning technology bring excellent anti-clogging performance for long life.
* Anti-siphon features (AS): Prevent debris and soil suction during system draining, making it available for SDI system.
* Non-drain (ND): Dripper shuts down at low pressure ( <0.14 bar) to keep the pipes full of water between irrigation intervals for precise and uniform irrigation in the whole system.
* Superb UV and chemical resistance: Expected lifespan over 7 to 10 years depends on the different wall thickness, good
anti-aging performance.
• Variety of flow rates and wall thickness: 3 flow rates (0.9L/H, 1.6L/H, 2.0L/H) and multiple wall thickness options from 0.4mm(15mil) to 1.0mm (39 mil) .
* Super clogging resistance: The wide filtration area, wide labyrinth passages and advanced self-cleaning technology bring excellent anti-clogging performance for long life.
* Anti-siphon features (AS): Prevent debris and soil suction during system draining, making it available for SDI system.
* Non-drain (ND): Dripper shuts down at low pressure ( <0.14 bar) to keep the pipes full of water between irrigation intervals for precise and uniform irrigation in the whole system.
* Superb UV and chemical resistance: Expected lifespan over 7 to 10 years depends on the different wall thickness, good
anti-aging performance.
• Variety of flow rates and wall thickness: 3 flow rates (0.9L/H, 1.6L/H, 2.0L/H) and multiple wall thickness options from 0.4mm(15mil) to 1.0mm (39 mil) .
Applications
● Working pressure:0.5-3.5Bar.
● Flat&hilly Topography
● Filtration Required:Above 120 mesh.

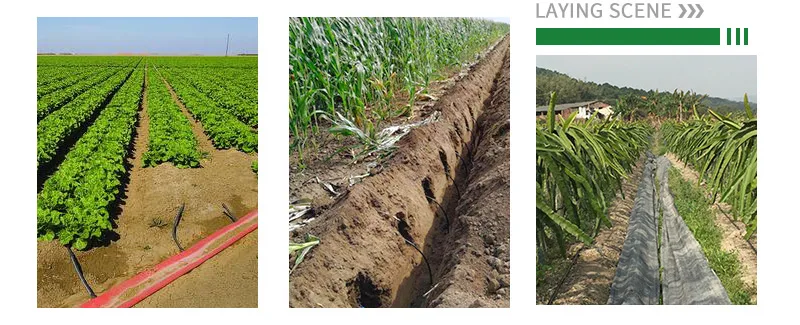

● Lay in line and levelly,all the holes of emitter must be upward.
● Suitable for the plaing on hills and mountains,or Sub-surface multi seasonal row crop.
● Filtration Required:Above 120 mesh.
● Lay in line and levelly,all the holes of emitter must be upward.
● Suitable for the plaing on hills and mountains,or Sub-surface multi seasonal row crop.
RELATED PRODUCTS
PACKAGING & SHIPPING
CERTIFICATIONS
Our Advantages
Quality: 1.Production is strictly controlled with ISO9261:2004.
2.More than 8 years of experience.The tops 10 companies in Alibaba in irrigation products.
3.No breakage for every roll.
4.Safe cohesion of flat dripper.

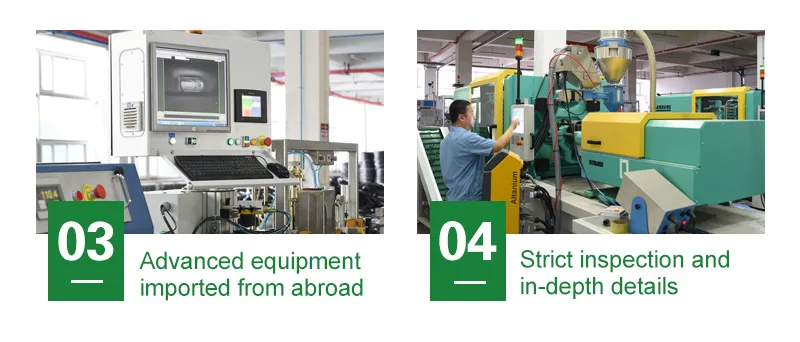

5.Strict quality Inspection.Inspection is carried out on diameter,wall thickness,spacing,
flow rate,bursting pressure,CV,emission uniformity,carbon black content,
hydrostatic pressure,tensile strengthQuantity:The actual meter of one roll is produced longer than the label stated.
Service: 1.customized specification is available.
2.The free sample could be provided for testing.
3.Before-cooperation:The professional advice will be provided by our technicians for you.
After-transaction:The key production process will be informed to you in time.
After-sales：One year warranty after shipment.
FACTORY & WORKSHOP
Hebei Plentirain Irrigation Equipment Technology Co.,Ltd. is a professional manufacturer in agricultural micro irrigation. Our team members entered the irrigation industry in 2010 and formally established the company in 2014. We are devoted to supplying high-quality products and satisfactory service to the clients under the brand name Plentirain. In 2015, the company passed ISO 9001:2015 quality management certification.
We provide one stop micro irrigation solutions. Our products cover the whole micro irrigation system, such as drip tape, dripline, PC on-line dripper, arrow dripper, fittings and accessories, screen & disc filter, PE layflat hose, rain spray tape, mini sprinklers.
OUR CUSTOMER
Delivery time |
15-20 days after receiving the payment of 30% deposit. |
Payment |
-Irrevocable L/C at sight. -30% T/T in advance and 70% balance against copy of B/L. |
Packing |

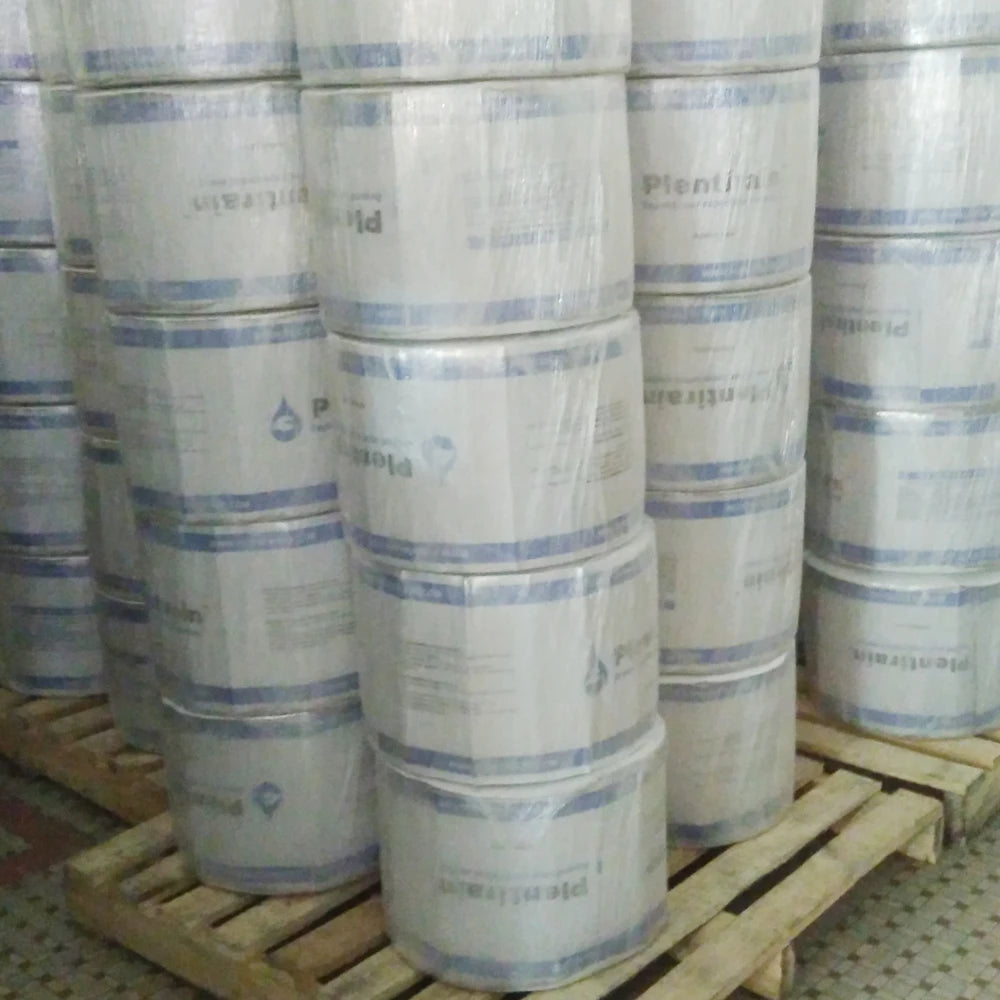

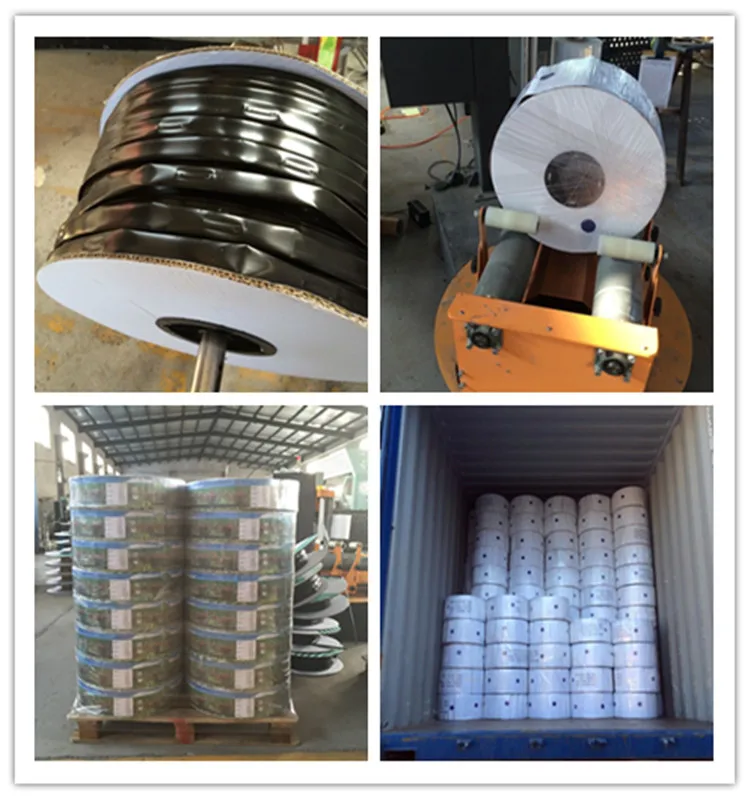

-Drip tape is packed into rolls with wrapping film covered outside. -Fittings are packed into paper cartons. -Pallet packing can be done if required. |
Loading port |
Tianjin port, Shanghai port, Ningbo port or customer's request |
Warranty |
1 year quality warranty for all products. |
